Carpet - Rear - Remove and Replace: Remove

  1. Open all doors.
  2. Fully lower all windows.
  3. Move the driver and front passenger seats fully forward.
  4. Remove the 2nd row floor mat from the vehicle.
  5. Remove the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
  6. Open the hood.
  7. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  8. Remove the LH and RH instrument panel end caps. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  9. Remove the LH and RH middle A-pillar trims. See TRIM - A-PILLAR - MIDDLE - LH (REMOVE AND REPLACE) .
  10. Remove the LH and RH lower A-pillar trims. See TRIM - A-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  11. Remove the driver and front passenger seats. See SEAT - DRIVER (REMOVE AND REPLACE) .
  12. Remove the LH and RH 2nd row seat side bolsters. See BOLSTER - SIDE - SEAT - 2ND ROW - LH (REMOVE AND REPLACE) .
  13. Remove the LH and RH rear sill panel trims. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .

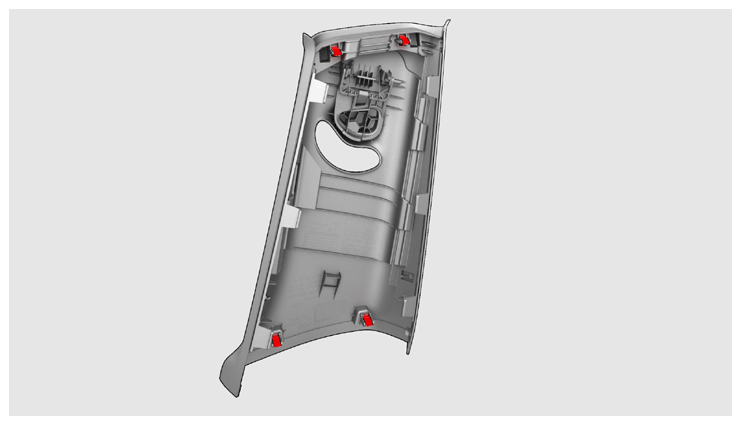

  14. While wearing suitable gloves, spread the bottom of the LH upper B-pillar trim open, and then release the clips that attach the bottom of the trim to the LH lower B-pillar trim After setting aside the LH upper B-pillar trim, repeat this step on the RH upper B-pillar trim.
    CAUTION: Be careful not to pull the upper B-pillar trim too far, otherwise it might break the seat belt shoulder adjustment mechanism.
    NOTE: Move the body seals to aid removal.
    G14741153Courtesy of TESLA, INC.
  15. Remove the LH and RH lower B-pillar trims. See TRIM - B-PILLAR - LOWER - LH (REMOVE AND REPLACE) .

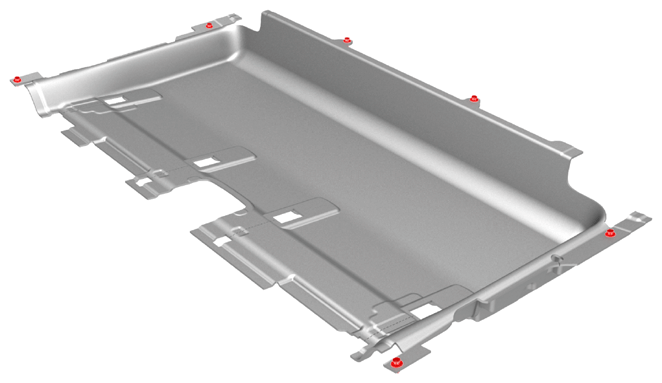

  16. Remove the clips (x6) and release the hook and loop strips that attach the rear carpet to the body.
    G14741154Courtesy of TESLA, INC.

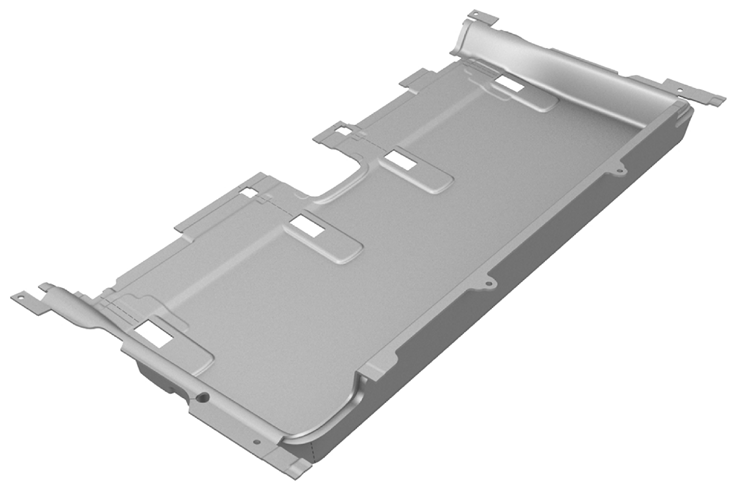

  17. Remove the rear carpet from the vehicle.
    G14741155Courtesy of TESLA, INC.
