Carpet - Front - LH - Remove and Replace: Remove

  1. Remove the driver seat. See SEAT - DRIVER (REMOVE AND REPLACE) .
  2. Remove the center console. See CENTER CONSOLE (REMOVE AND INSTALL) .

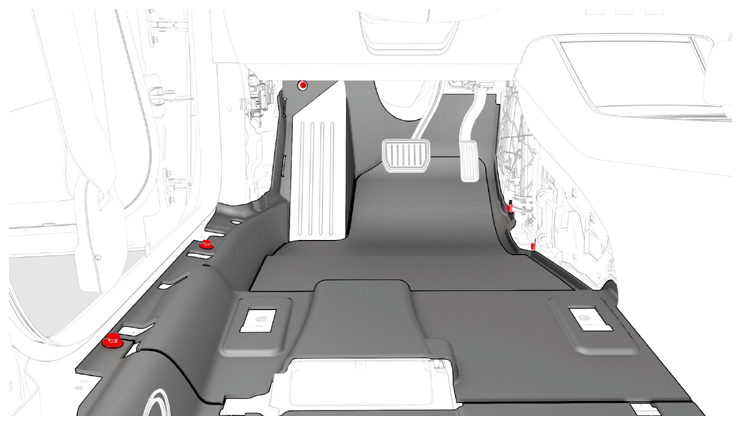

  3. Release the clips that attach the LH front carpet to the body.
    G14741146Courtesy of TESLA, INC.

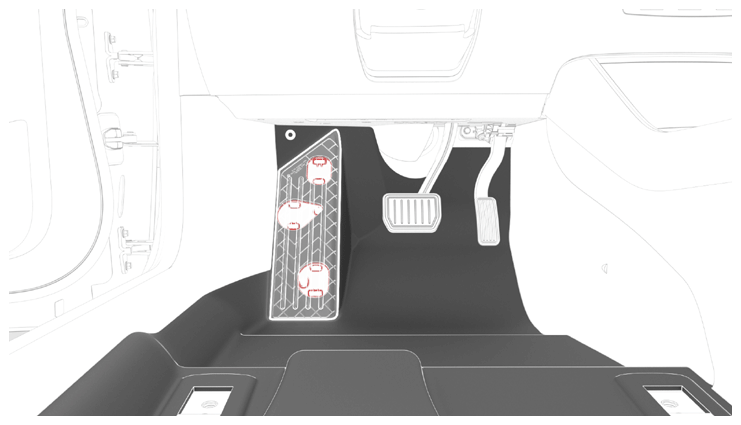

  4. Release the clips that attach the driver footrest to the body, and then remove the LH front carpet from the vehicle.
    G14741147Courtesy of TESLA, INC.
