Carpet - Front - LH - Remove and Replace: Install

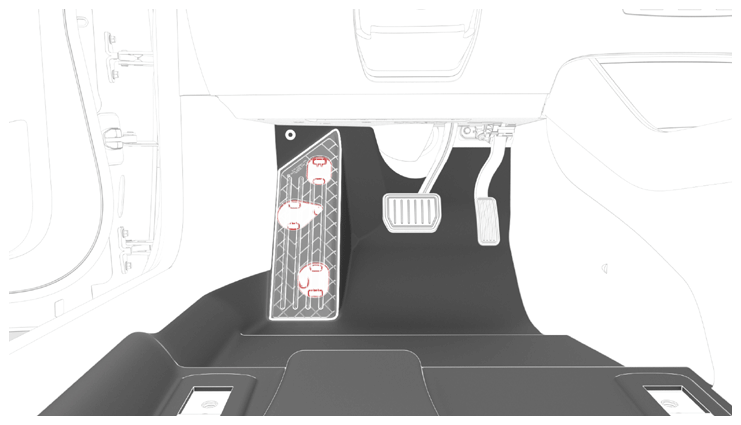

  1. Install the LH front carpet into the vehicle and fasten the clips that attach the driver footrest to the body.
    G14741148Courtesy of TESLA, INC.

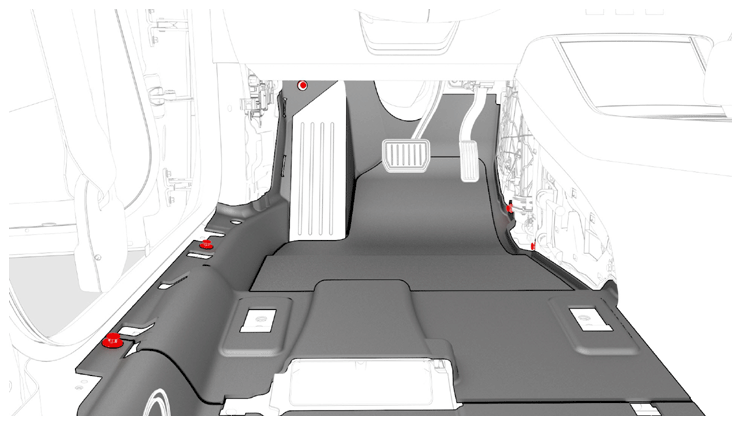

  2. Fasten the clips that attach the LH front carpet to the body.
    G14741149Courtesy of TESLA, INC.
  3. Install the center console. See CENTER CONSOLE (REMOVE AND INSTALL) .
  4. Install the driver seat. See SEAT - DRIVER (REMOVE AND REPLACE) .
