Grille - Speaker - Instrument Panel - Remove and Replace: Remove

  1. Remove the LH and RH instrument panel end caps. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  2. Remove the LH and RH middle A-pillar trims. See TRIM - A-PILLAR - MIDDLE - LH (REMOVE AND REPLACE) .
  3. Remove the LH and RH upper A-Pillar trims. See TRIM - A-PILLAR - UPPER - LH (REMOVE AND REPLACE) .

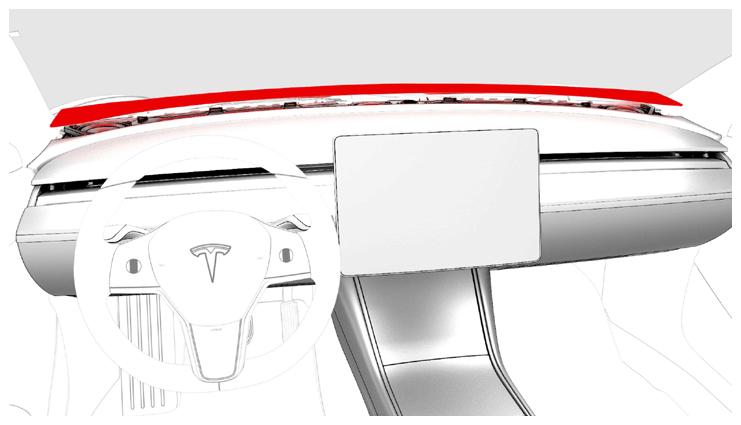

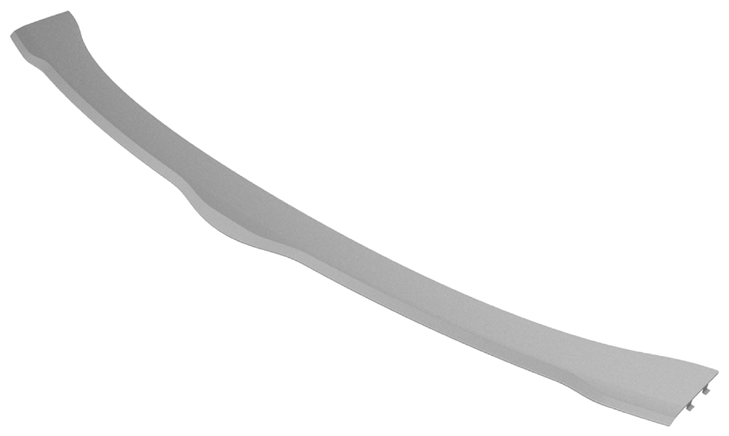

  4. Release the clips that attach the speaker grille to the body. Rotate the rear of the speaker grille upwards, and then pull the grille towards the rear of the vehicle to remove it.
    G14740703Courtesy of TESLA, INC.
    G14740704Courtesy of TESLA, INC.
