Glove Box (Without Knee Airbags) - Remove and Replace: Install

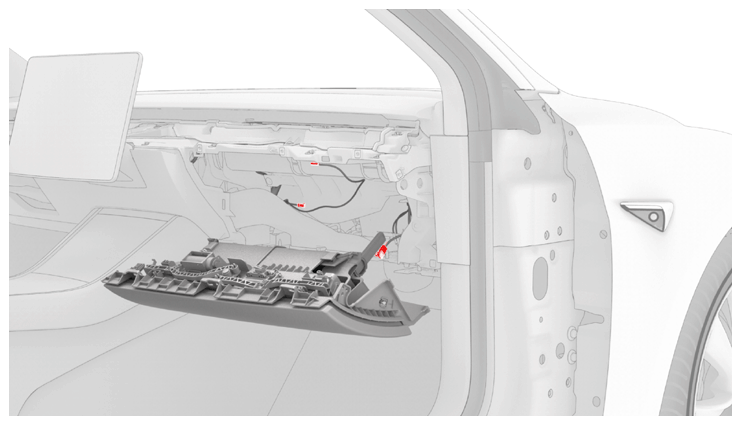

  1. Bring the glove box into the vehicle, and then connect the electrical harness to the glove box solenoid connector, the damper connector, and the puddle light connector.
    NOTE: 2 of the electrical connectors are accessed from the bottom of the instrument panel.
    CAUTION: Route the electrical harness from the puddle lamp forward of the divider at the linkages.
    G14740699Courtesy of TESLA, INC.
  2. Make sure that the glove box damper pin is fully seated, and not to bump the glove box damper when installing the glove box.

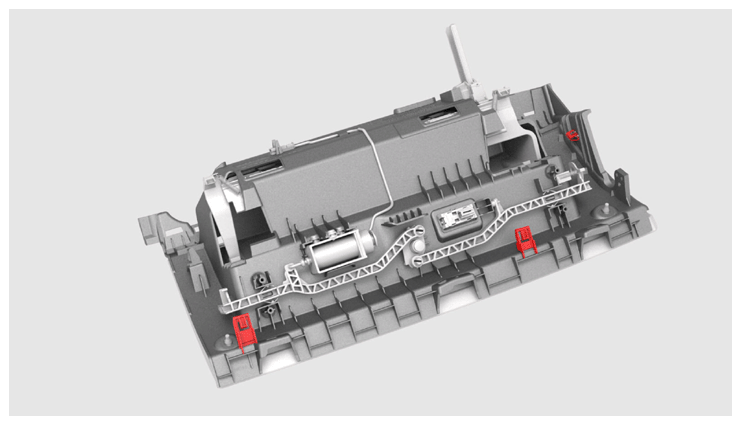

  3. Fasten the clips that attach the glove box to the IP carrier.
    G14740700Courtesy of TESLA, INC.

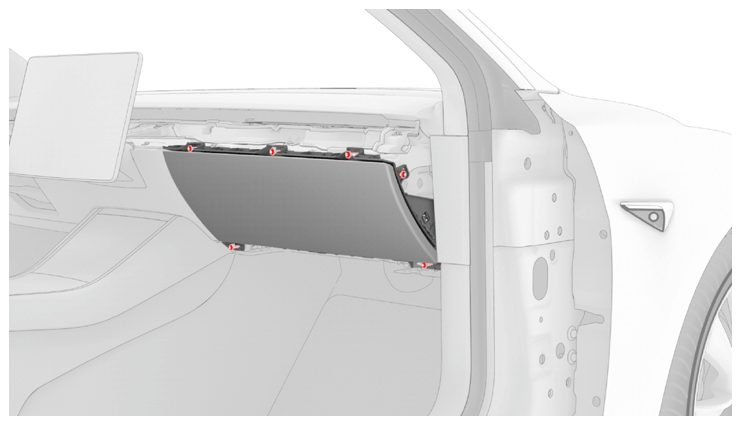

  4. Install the screws that attach the glove box to the IP carrier.

    2.3 N.m (1.7 ft-lbs)

    G14740701Courtesy of TESLA, INC.
  5. Close the glove box.
  6. Install the main instrument panel decor trim. See DECOR TRIM - INSTRUMENT PANEL - MAIN (REMOVE AND REPLACE) .
  7. Install the passenger footwell cover. See COVER - FOOTWELL - PASSENGER (LHD) (REMOVE AND REPLACE) .
  8. Install the RH lower A-pillar trim. See TRIM - A-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  9. Install the RH middle A-pillar trim. See TRIM - A-PILLAR - MIDDLE - LH (REMOVE AND REPLACE) .
  10. Install the LH and RH air wave end caps. See END CAP - AIR WAVE - LH (REMOVE AND REPLACE) .
  11. Install the LH and RH instrument panel end caps. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  12. Verify that the glove box opens normally through the touchscreen.
  13. If removed earlier, put the customer's belongings back into the glove box.
