Cover - Footwell - Passenger (LHD) - Remove and Replace: Remove

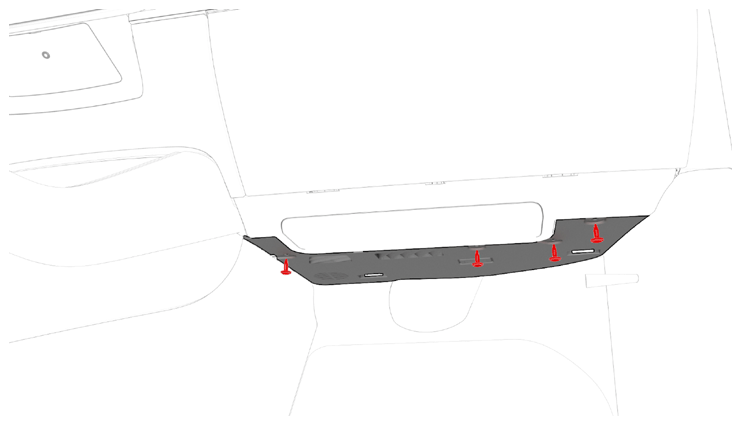

  1. Release the clips that attach the passenger footwell cover to the vehicle.
    G14740658Courtesy of TESLA, INC.

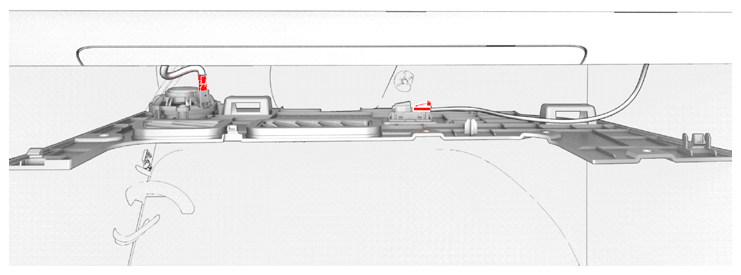

  2. Disconnect the electrical wiring harness connectors from the puddle light and emergency speaker.
    CAUTION: Do not disconnect the connectors by pulling on the harness.
    NOTE: If needed, use a pocket screwdriver to assist disconnecting.
    G14740659Courtesy of TESLA, INC.

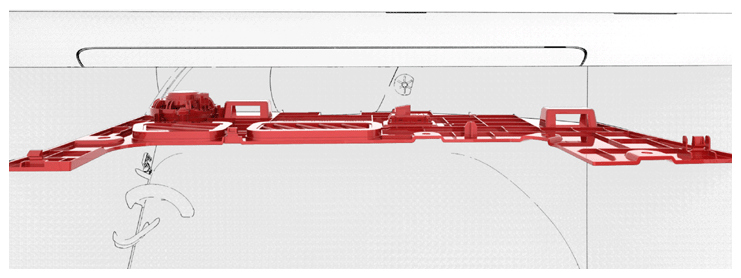

  3. Remove the footwell cover from the vehicle.
    G14740660Courtesy of TESLA, INC.

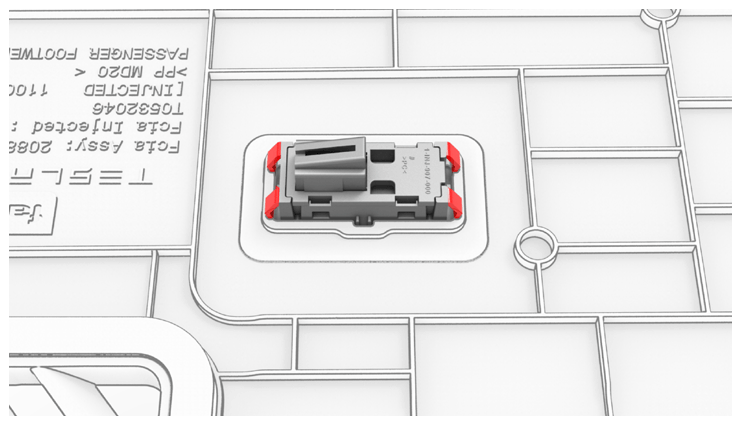

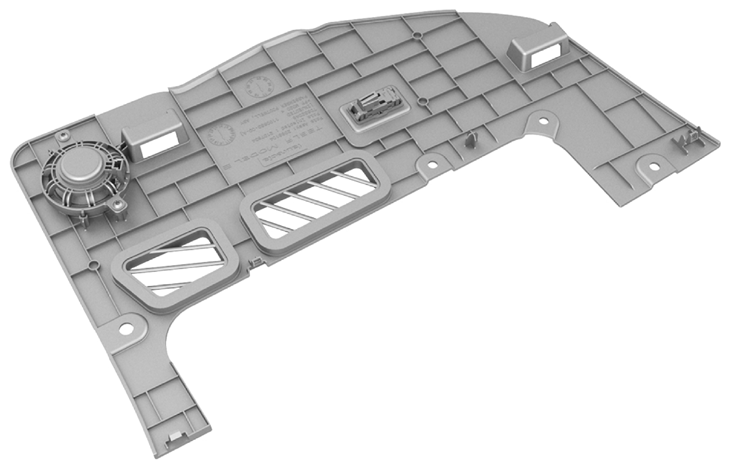

  4. Release the clips that attach the puddle light to the passenger footwell cover, and then remove the puddle light from the footwell cover.
    G14740661Courtesy of TESLA, INC.
    G14740662Courtesy of TESLA, INC.
