Cover - Airbag - Knee - Front Passenger - Remove and Replace: Install

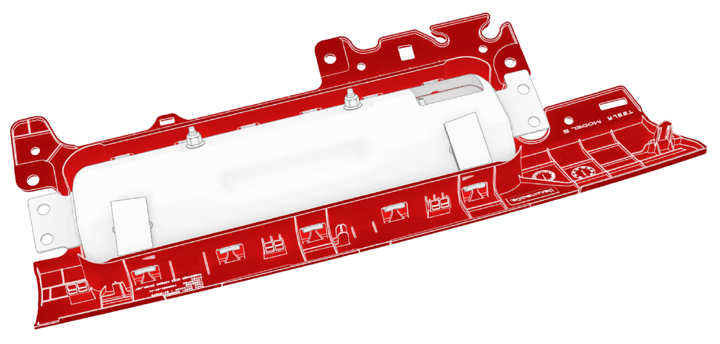

Install the passenger knee airbag into the airbag cover by installing the rear tabs first, and then press down against the airbag while pushing upwards on the edge of the cover.

Courtesy of TESLA, INC.

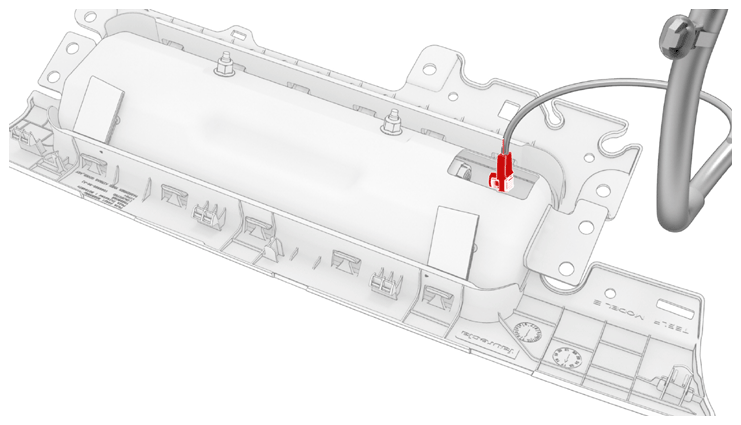

Install the electrical connector to the airbag.
CAUTION: Support the front passenger knee airbag cover during installation.

Courtesy of TESLA, INC.
Position the front passenger knee airbag cover on the vehicle.

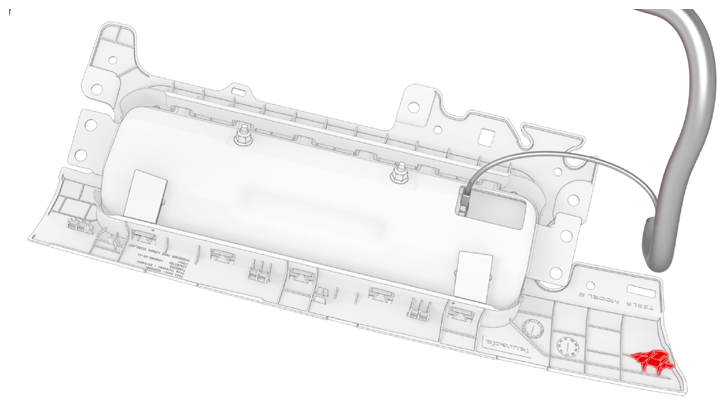

NOTE: Carefully install the corner clip, as it can be easily damaged.

NOTE: Take Care When Releasing Highlighted Clip.

Courtesy of TESLA, INC.

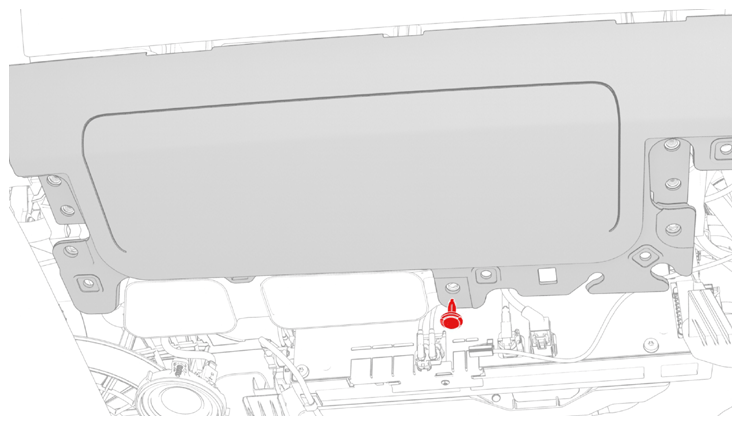

Install the clip that attaches the front passenger knee airbag cover to the vehicle.
NOTE: Make sure that the clips on the rear edge of the front passenger knee airbag cover engage the IP carrier

Courtesy of TESLA, INC.

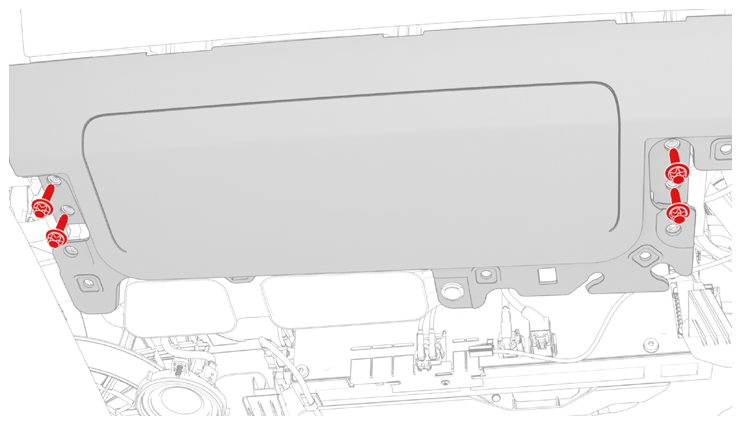

Install the new T30 patchbolts (x4) that attach the front passenger knee airbag cover to the vehicle.
2.3 N.m (1.7 ft-lbs)

Courtesy of TESLA, INC.

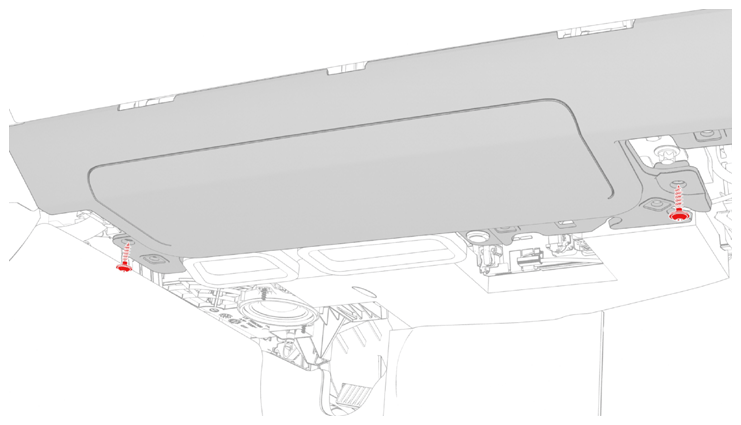

Install the T20 bolts (x2) that attach the front passenger knee airbag cover to the vehicle.
2 N.m (1.5 ft-lbs)

Courtesy of TESLA, INC.
Install the passenger footwell cover. See COVER - FOOTWELL - PASSENGER (LHD) (REMOVE AND REPLACE) .
Reconnect 12V power. See 12V/LV POWER (DISCONNECT AND CONNECT) .
