Reinforcement - Front Fascia - LH - Remove and Replace: Install

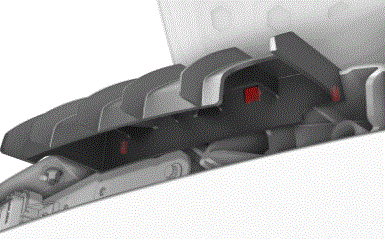

  1. Lock the tab (x1) to install the fascia reinforcement to the front end of carrier.
    G00651231Courtesy of TESLA, INC.
  2. Install the fascia. See Fascia - Front - Remove and Replace
