Door - Rear - LH - Remove and Install: Install

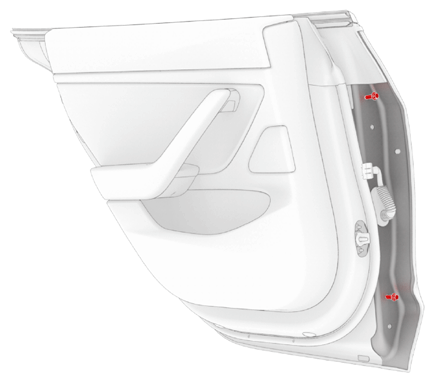

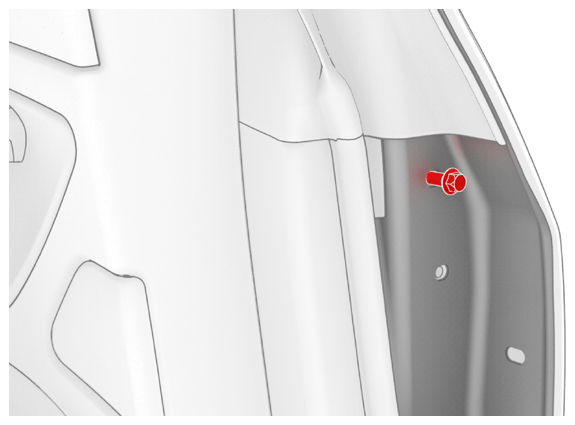

  1. Make sure that the upper bolt for each door hinge is installed, and the bolt head extends approximately 10 mm from flush.
    G14738966Courtesy of TESLA, INC.
    G14738967Courtesy of TESLA, INC.
  2. With assistance, lower the rear LH door onto the door hinges, and engage the upper bolts into the hinges.

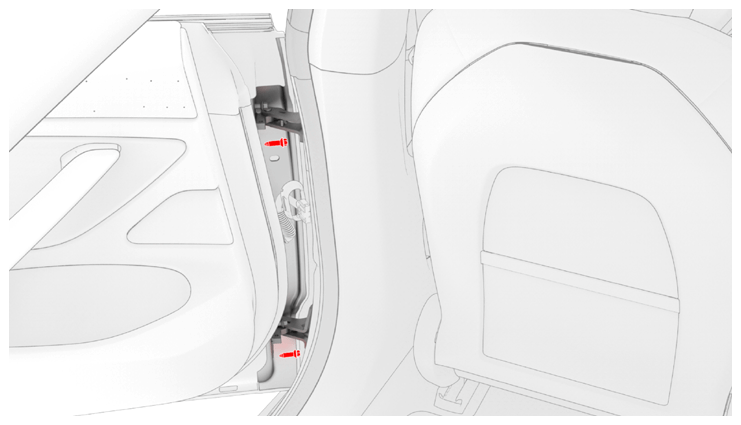

  3. Install the lower bolt of each hinge into the door and hand-tighten all bolts.
    G14738968Courtesy of TESLA, INC.

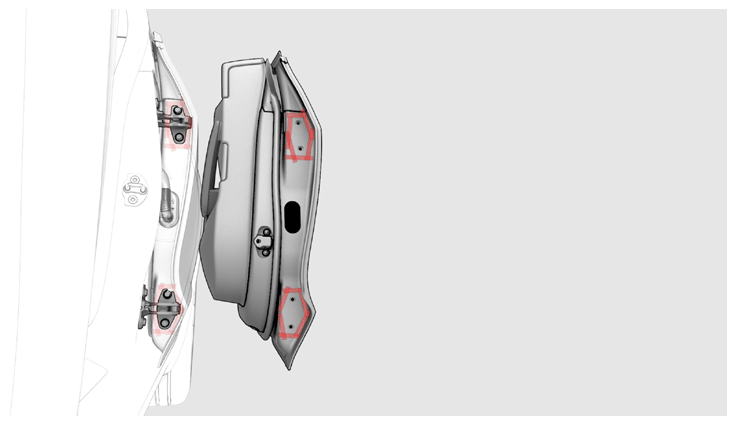

  4. Position the door so that the hinges line up with the dry-erase marker lines or the marking tape.
    G14738969Courtesy of TESLA, INC.

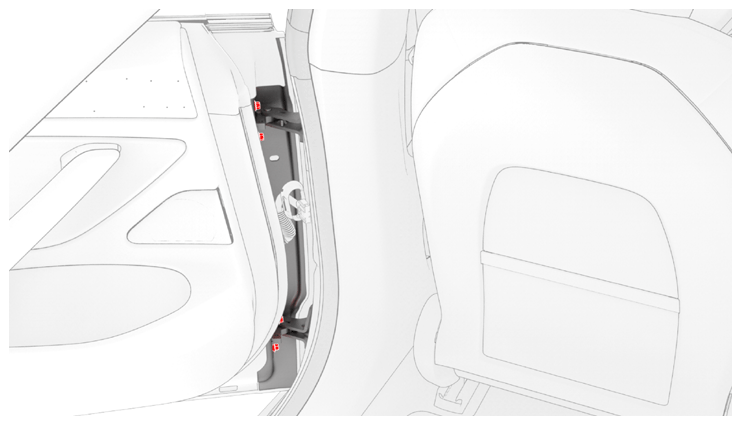

  5. Tighten the hinge bolts.

    24 N.m (17.7 ft-lbs)

    G14738970Courtesy of TESLA, INC.

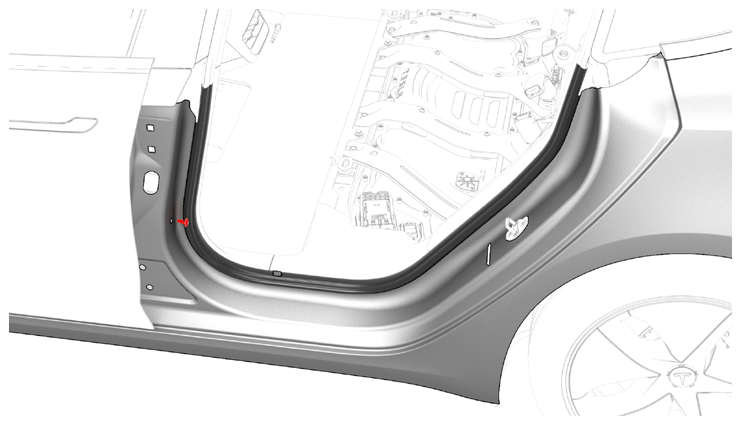

  6. Install the bolt that attaches the door check to the B-pillar.

    24 N.m (17.7 ft-lbs)

    G14738971Courtesy of TESLA, INC.

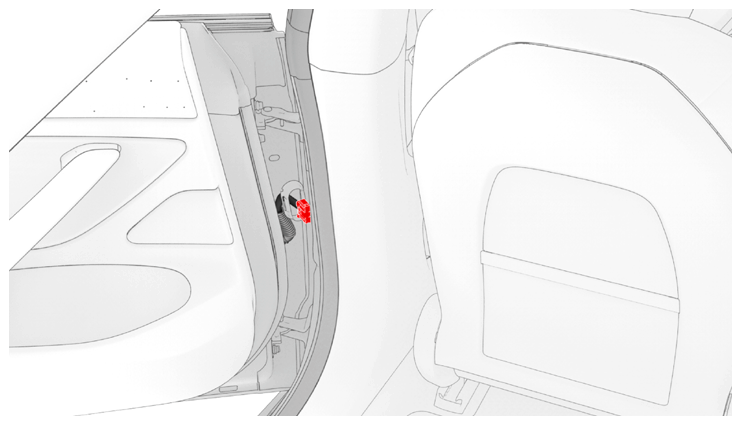

  7. Connect the rear LH door wiring harness and press the harness against the inside of the rear LH door.
    G14738972Courtesy of TESLA, INC.
  8. Open the front LH door and close the rear LH door.

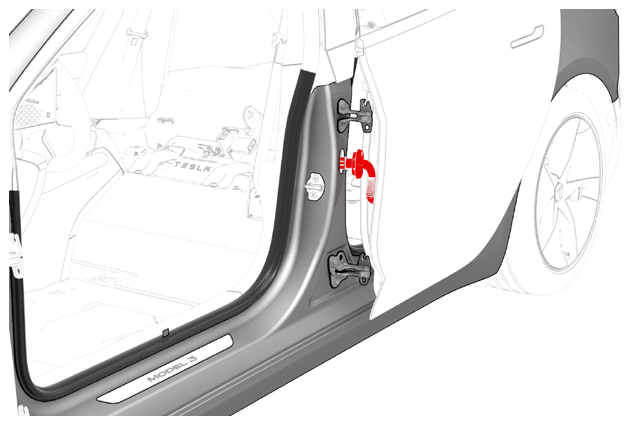

  9. Move the rear LH door electrical harness connector into the hole in the B-pillar, press the rear LH door wiring harness seal into the B-pillar, and fasten the clips (x4) that attach the seal to the B-pillar bulkhead.
    NOTE: Make sure that the rear LH door wiring harness seal fits tightly against the B-pillar bulkhead.
    G14738973Courtesy of TESLA, INC.
  10. Raise the rear LH window, remove the shop towel from the rear LH door striker, and close both LH doors.
