Decor Trim - Instrument Panel - Main - Remove and Replace: Remove
- Remove the LH instrument panel end cap. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
- Remove both the LH air wave end cap. See END CAP - AIR WAVE - LH (REMOVE AND REPLACE) .
- Repeat steps 1 and 2 for the RH side of the vehicle.

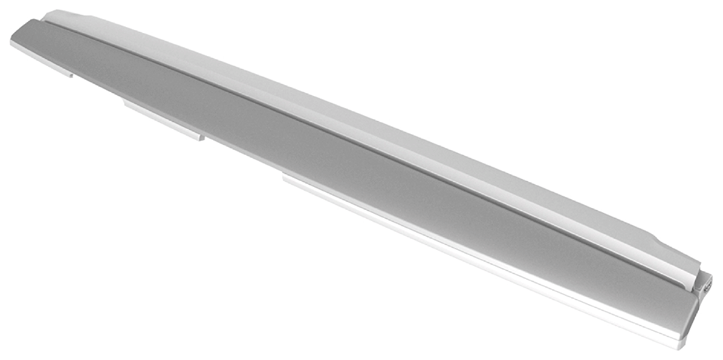

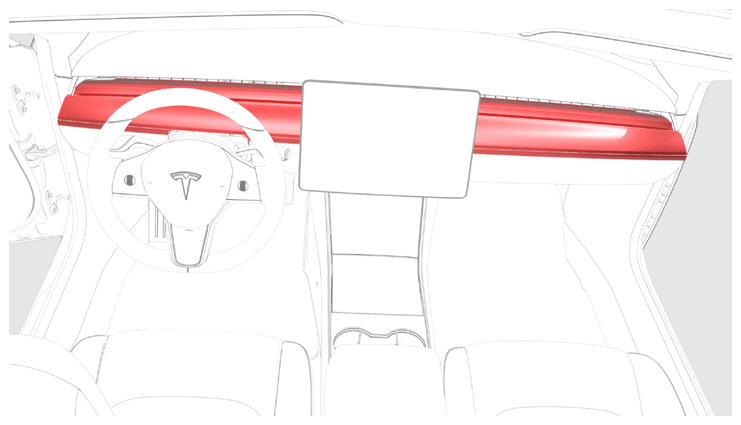

- Release the clips that attach the main instrument panel decor trim, and then remove the trim from the instrument panel.
