Tweeter - Front Door - LH - Remove and Replace: Remove

multimedia:A supplement to the article is available.
WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

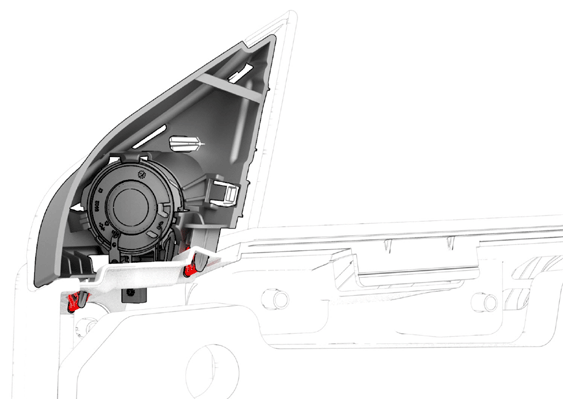

  1. Pull straight up to release the clips that attach the LH front door tweeter assembly to the door.
    CAUTION: Do not pull the tweeter assembly too far from the door panel, as the tweeter electrical connector is still attached.
    G14748483Courtesy of TESLA, INC.

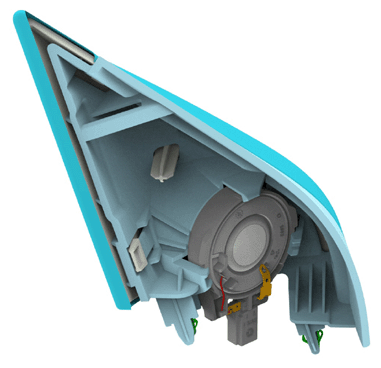

  2. Disconnect the electrical connector from the tweeter, and then remove the tweeter from the door.
    G14748484Courtesy of TESLA, INC.
