Speaker - Parcel Shelf - LH - Remove and Replace: Remove

  1. Remove the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
  2. Remove the LH and RH 2nd row seat side bolsters. See BOLSTER - SIDE - SEAT - 2ND ROW - LH (REMOVE AND REPLACE) .
  3. Remove the LH and RH side rail trims. See TRIM - SIDE RAIL - LH (REMOVE AND REPLACE) .
  4. Remove the LH and RH upper C-pillar trims. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
  5. Remove the package tray trim. See TRIM - PACKAGE TRAY (REMOVE AND REPLACE) .

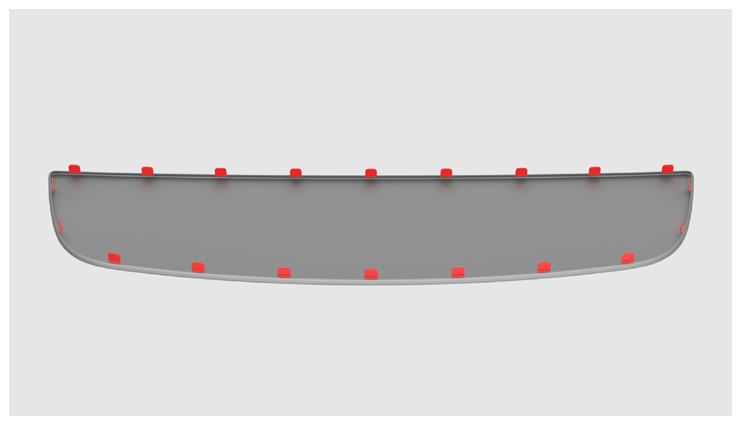

  6. Release the tabs that attach the parcel shelf speaker grille to the vehicle.
    G14748472Courtesy of TESLA, INC.

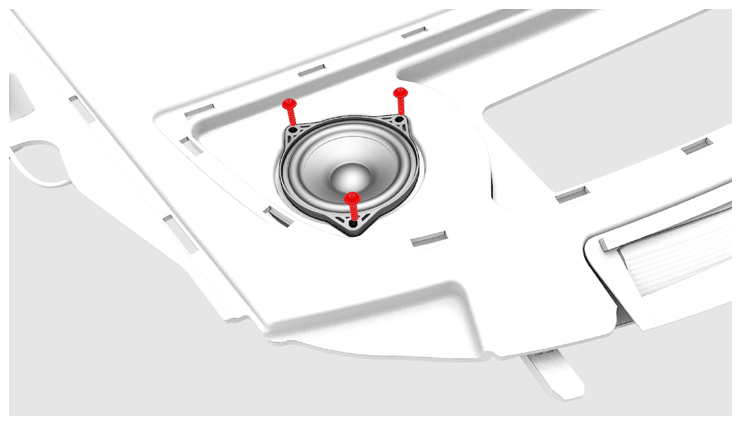

  7. Remove the screws that attach the LH parcel shelf speaker to the vehicle.

    2.3 N.m (1.7 ft-lbs)

    G14748473Courtesy of TESLA, INC.
    NOTE: Support and then remove the speaker bracket underneath.

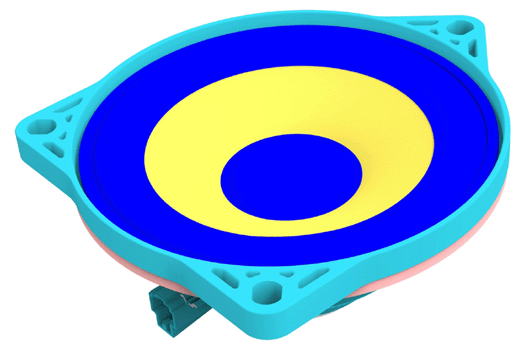

  8. Lift the LH parcel shelf speaker from the vehicle, and then disconnect the electrical connector from the speaker.
  9. Remove the LH parcel shelf speaker from the vehicle.
