Speaker - Emergency - Remove and Replace: Remove

  1. Remove the RH footwell cover. See COVER - FOOTWELL - PASSENGER (LHD) (REMOVE AND REPLACE) .

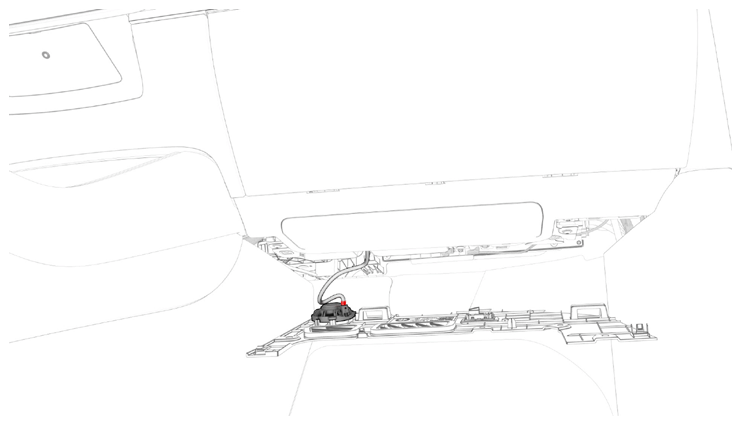

  2. Disconnect the electrical connector for the emergency speaker.
    G14748464Courtesy of TESLA, INC.

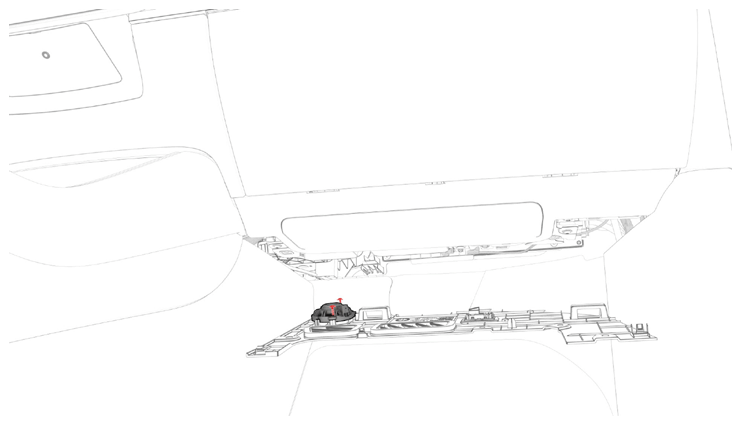

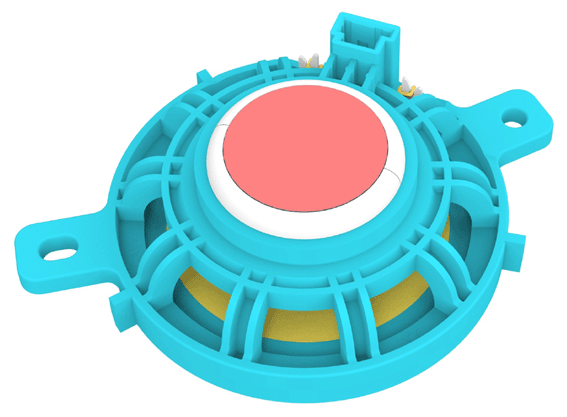

  3. Release the screws that attach the emergency speaker to the RH footwell cover, and then remove the emergency speaker.

    0.9 N.m (8 in-lbs)

    G14748465Courtesy of TESLA, INC.
    G14748466Courtesy of TESLA, INC.
