Chime - Power Trunk - Remove and Replace: Remove
- Remove the power trunk lid trim and place the trim on a clean working surface. See TRIM - LID - POWER TRUNK (REMOVE AND REPLACE) .
- Disconnect the electrical harness from the power chime.

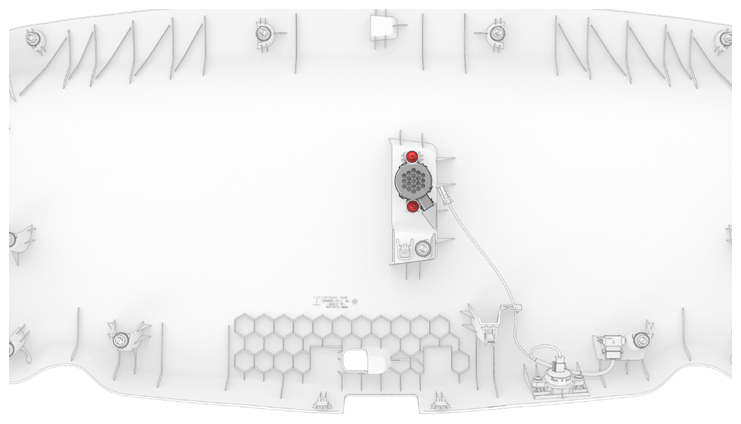

- Remove the screws that attach the power trunk chime to the power trunk lid trim, and then remove the chime from the trim.
2.3 N.m (1.7 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- Torx T20 socket
- 4 in extension
- Ratchet/torque wrench
