Tuner - FM/HD - Remove and Replace: Remove
- Remove the RH side rail trim. See TRIM - SIDE RAIL - LH (REMOVE AND REPLACE)
.

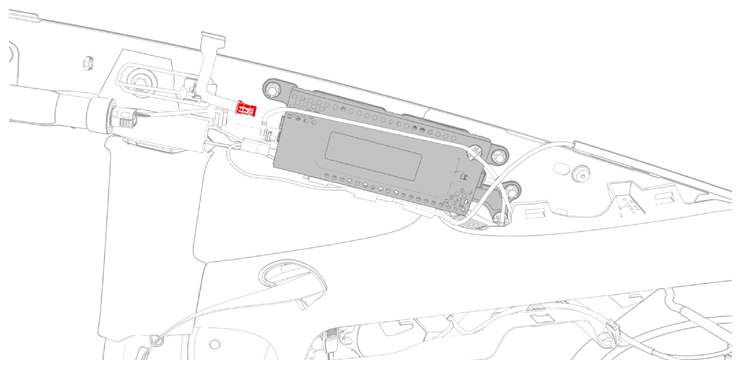

- Disconnect the backlight electrical connector from the tuner.
 Courtesy of TESLA, INC.
|

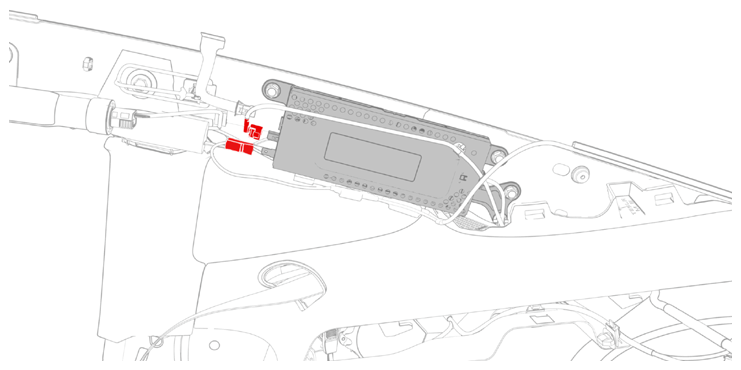

- Disconnect the electrical connectors from the front of the tuner.
 Courtesy of TESLA, INC.
|

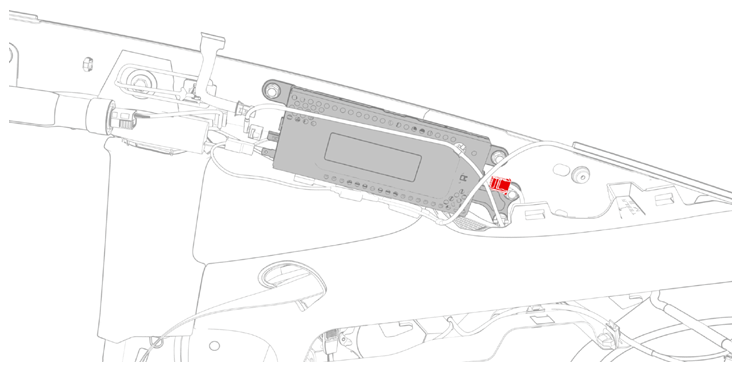

- Disconnect the electrical connector from the rear of the tuner.
 Courtesy of TESLA, INC.
|
- Release the clips that attach the wiring harnesses to the tuner.
 Courtesy of TESLA, INC.
|

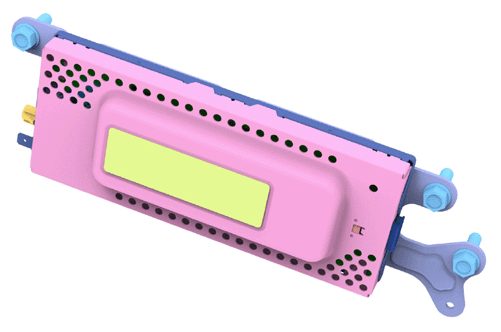

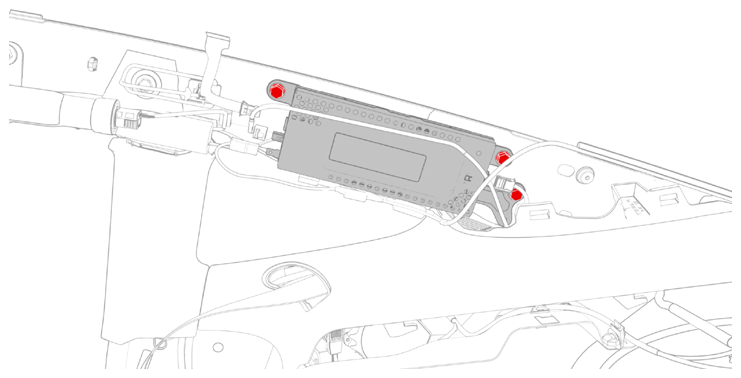

- Remove the bolts that attach the tuner to the body, and then remove the tuner from the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
