Light - Fog/Reverse - Rear - LH - Remove and Replace: Remove

  1. Remove the trunk lid trim. See TRIM - LID - TRUNK (REMOVE AND REPLACE) .
  2. Disconnect the electrical wiring harness connector from the LH rear fog/reverse light.
    G14744288Courtesy of TESLA, INC.
  3. Remove the nut that attaches the LH rear fog/reverse light to the trunk lid.

    3.2 N.m (2.4 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • 8 mm deep socket
    • 4 in extension
    G14744289Courtesy of TESLA, INC.
  4. Remove the LH rear fog/reverse light from the trunk lid.
    NOTE: Carefully pry on the exterior of the LH rear fog/reverse light to release it.

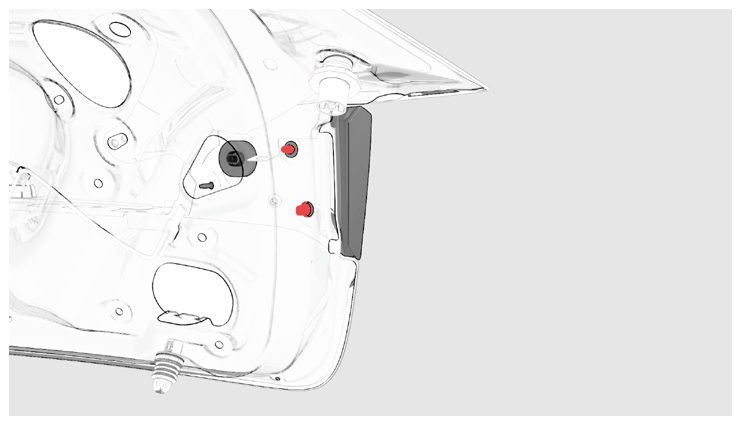

    G14744290Courtesy of TESLA, INC.
  5. Remove and discard the grommets from the trunk lid.

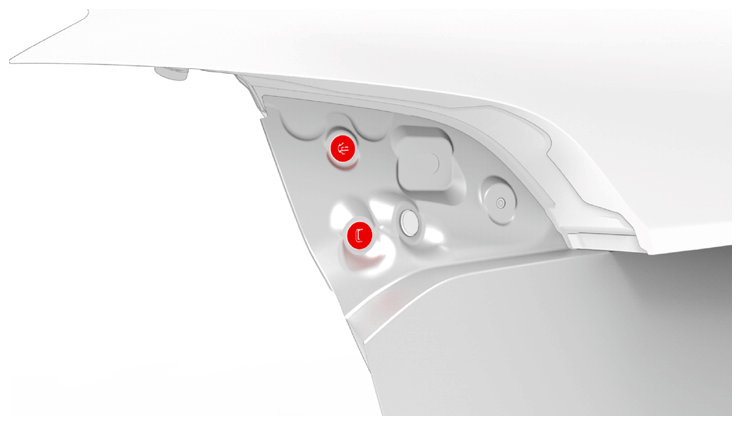

    G14744291Courtesy of TESLA, INC.
  6. If the fog/reverse light is to be reinstalled, remove the gaskets from around the threaded mounting stud and the light connector.
