Connector End View - X980F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

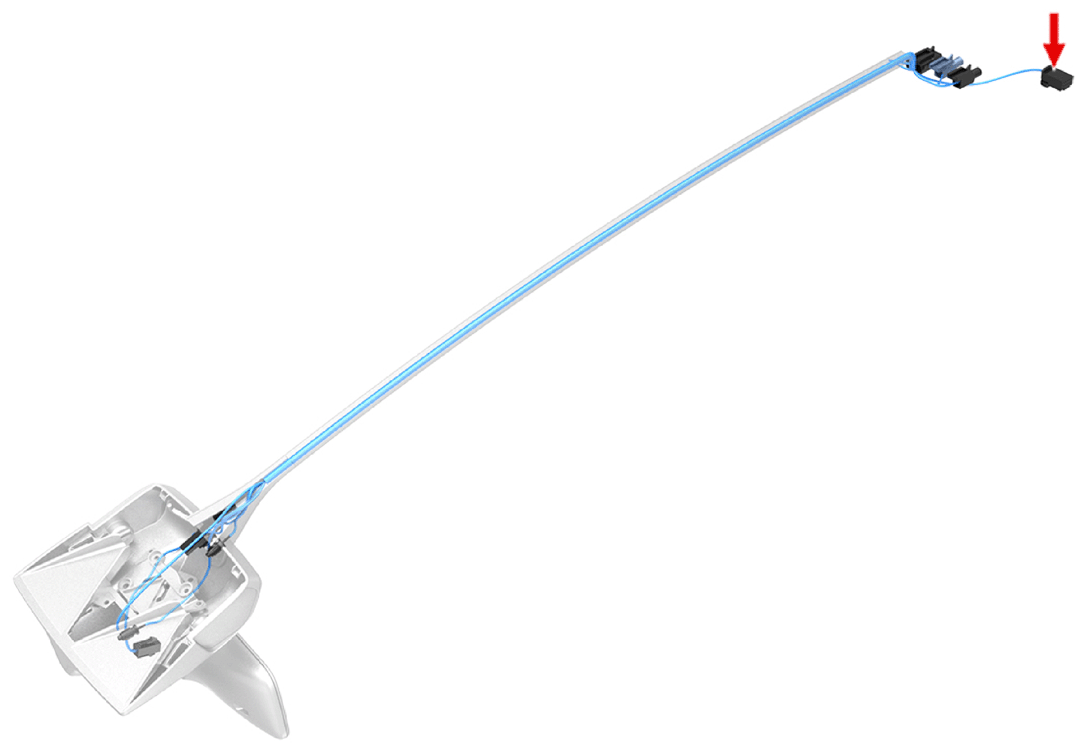

Fig 1: Connector Component Location - X980F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-3909

Fig 2: Connector End View - X980F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: WH

Cav	Col	Gauge
1	BU/WH	0.35
2	GN	0.13
3	GY	0.13
4	RD	0.13
5	BK	0.35
6	RD/BU	0.35
8	GN	0.35
10	BK	0.35
