Connector End View - X977F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

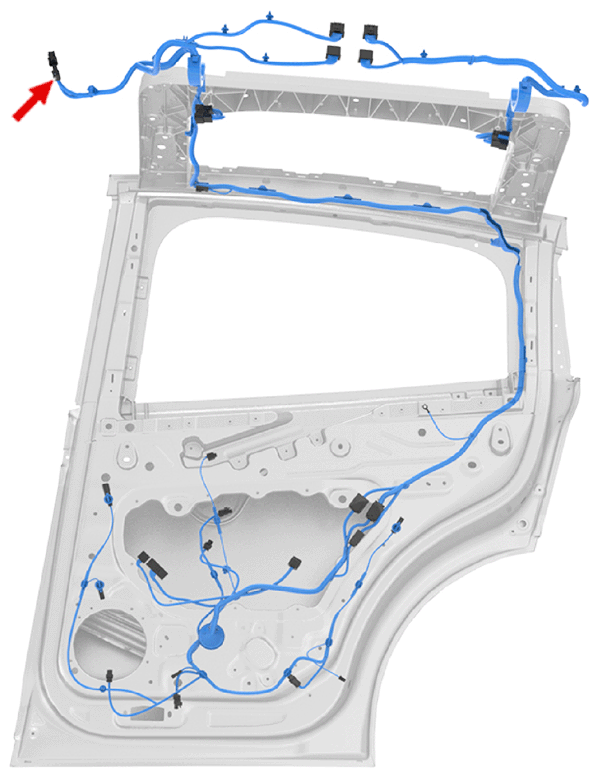

Fig 1: Connector Component Location - X977F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-3926

Fig 2: Connector End View - X977F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: BK

Cav	Col	Gauge
2	GY	0.35
4	GY/WH	0.35
5	BU	0.35
6	BU	0.35
7	BU	0.35
8	BN	0.35
10	BN/WH	0.35
16	BN	0.35
17	BN	0.35
18	BN	0.35
