Connector End View - X976M [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

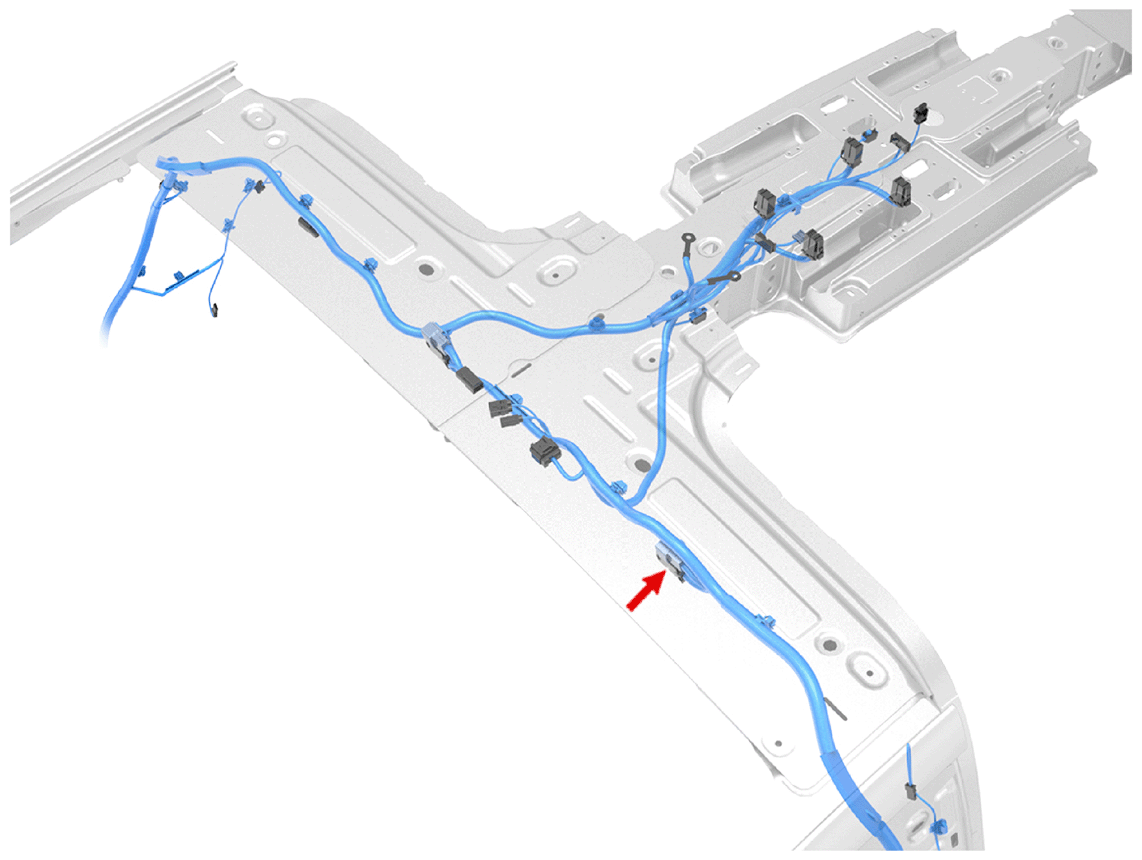

Fig 1: Connector Component Location - X976M [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-3926

Fig 2: Connector End View - X976M [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: BK

Cav	Col	Gauge
1	BU	0.13
2	BU/WH	0.35
3	GY	0.13
4	BK/GY	0.35
6	GY	0.35
8	WH	0.13
9	WH	0.13
10	GY	0.13
11	GY	0.13
12	WH	0.13
13	WH	0.13
14	WH	0.13
15	WH	0.13
17	RD	0.35
19	BN	0.13
20	BN	0.13
21	BN	0.13
22	BN	0.13
