Connector End View - X974F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

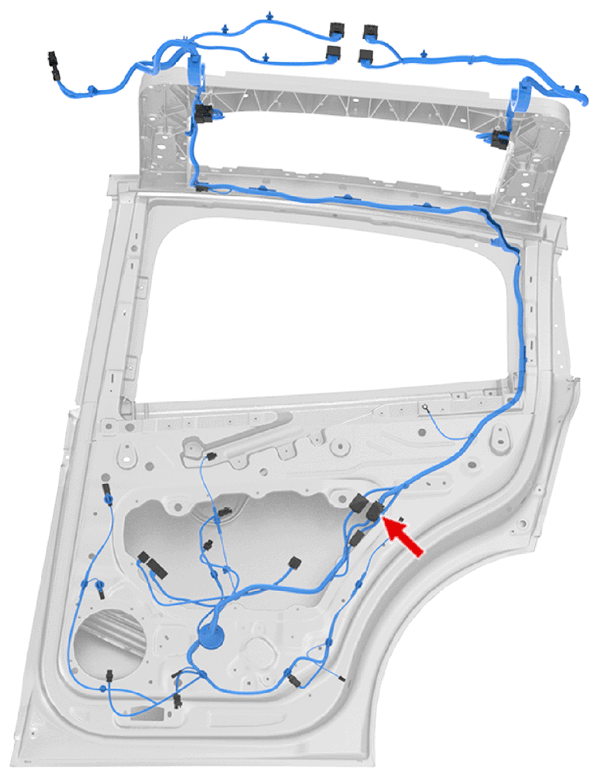

Fig 1: Connector Component Location - X974F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-3926

Fig 2: Connector End View - X974F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: BK

Cav	Col	Gauge
1	GN	0.35
2	GN	0.35
3	BK/WH	0.35
4	BK/WH	0.35
8	BN	0.5
9	BN	0.5
10	BU	0.5
11	BU	0.5
13	GY	0.35
15	GY	0.35
16	VT	0.35
17	VT	0.35
20	GY/WH	0.35
22	GY/WH	0.35
