Connector End View - X972M [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

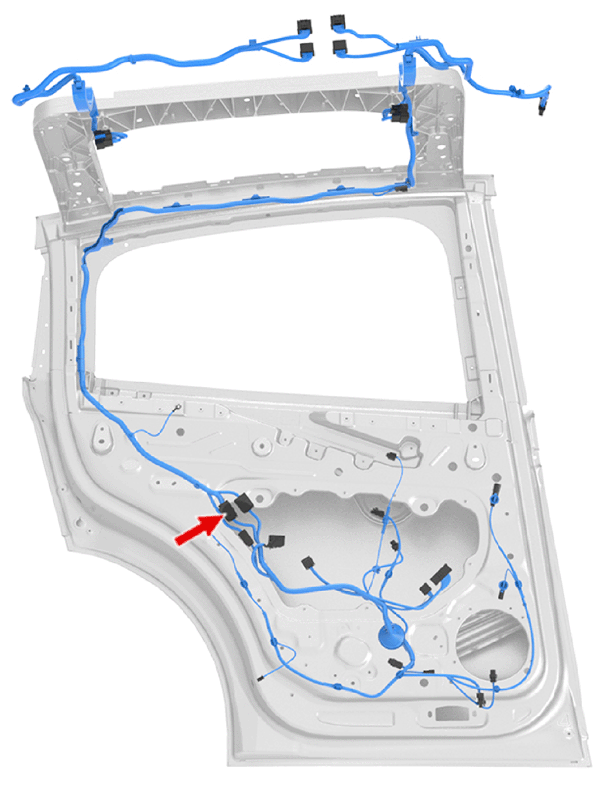

Fig 1: Connector Component Location - X972M [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-3926

Fig 2: Connector End View - X972M [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: BK

Cav	Col	Gauge
2	GY	0.35
4	RD	0.35
6	BU/WH	0.35
8	BK/WH	0.35
10	GN	0.35
12	GY/WH	0.35
13	GY/WH	0.35
15	GY/WH	0.35
17	BK/GY	0.35
19	GY	0.35
20	GY	0.35
22	GY	0.35
