Connector End View - X971F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

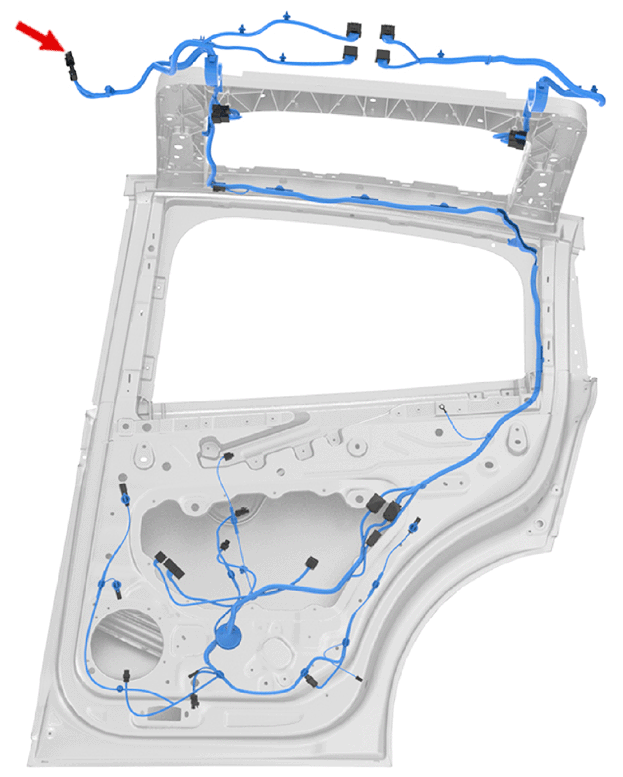

Fig 1: Connector Component Location - X971F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-5659

Fig 2: Connector End View - X971F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: WH

Cav	Col	Gauge
1	BU	0.75
2	RD/GN	2
3	RD	1.5
4	BU	1.5
6	BK/WH	2
7	BK/GY	0.35
8	OG	0.35
9	GN	0.35
10	BK	0.35
11	BK	0.35
12	BK	1
14	GY/WH	0.35
15	GY	0.35
16	BU/WH	0.35
17	VT	0.35
