Connector End View - X960 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

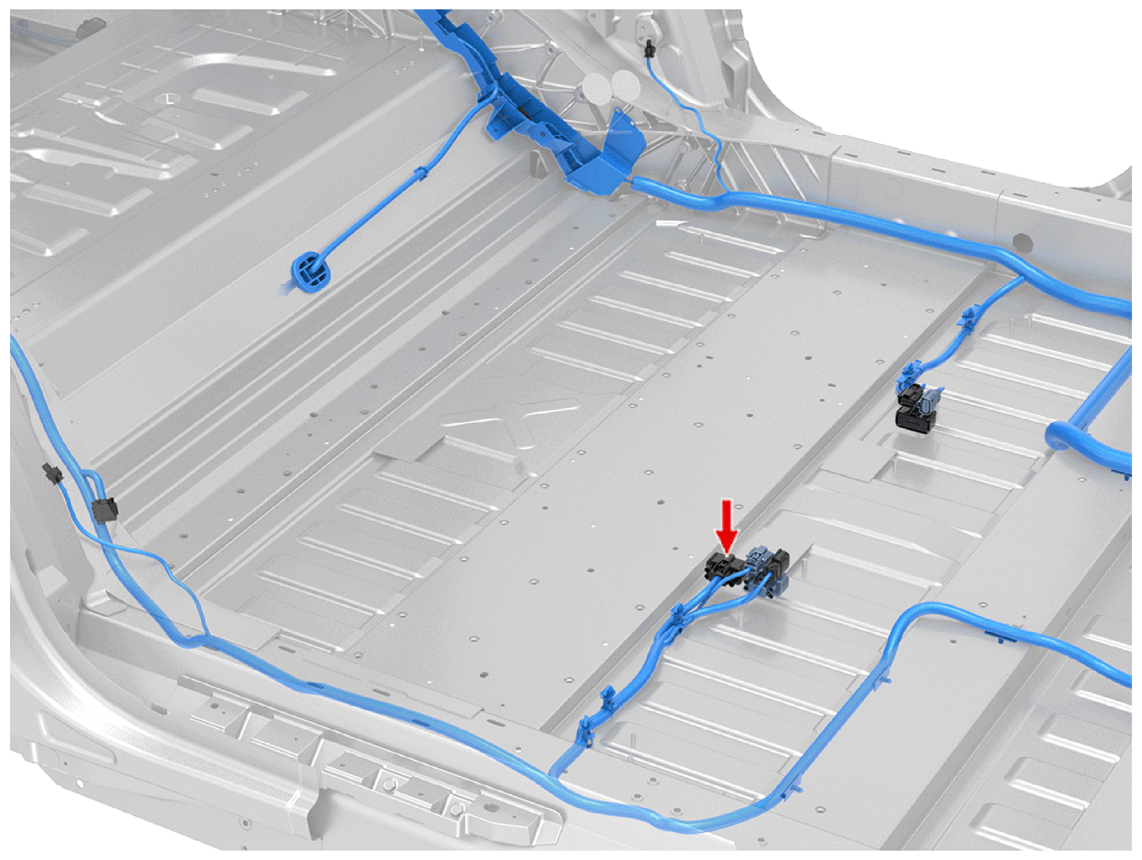

Fig 1: Connector Component Location - X960 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]
G15220000Courtesy of TESLA, INC.

Connector Detail: molex_34985-1602

Fig 2: Connector End View - X960 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]
G15220001Courtesy of TESLA, INC.

Gender: UNSPEC

Color: GY

Cav Col Gauge
1 RD 2
2 BN/WH 0.5
3 BN/WH 0.5
8 BK 2
