Connector End View - X955F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

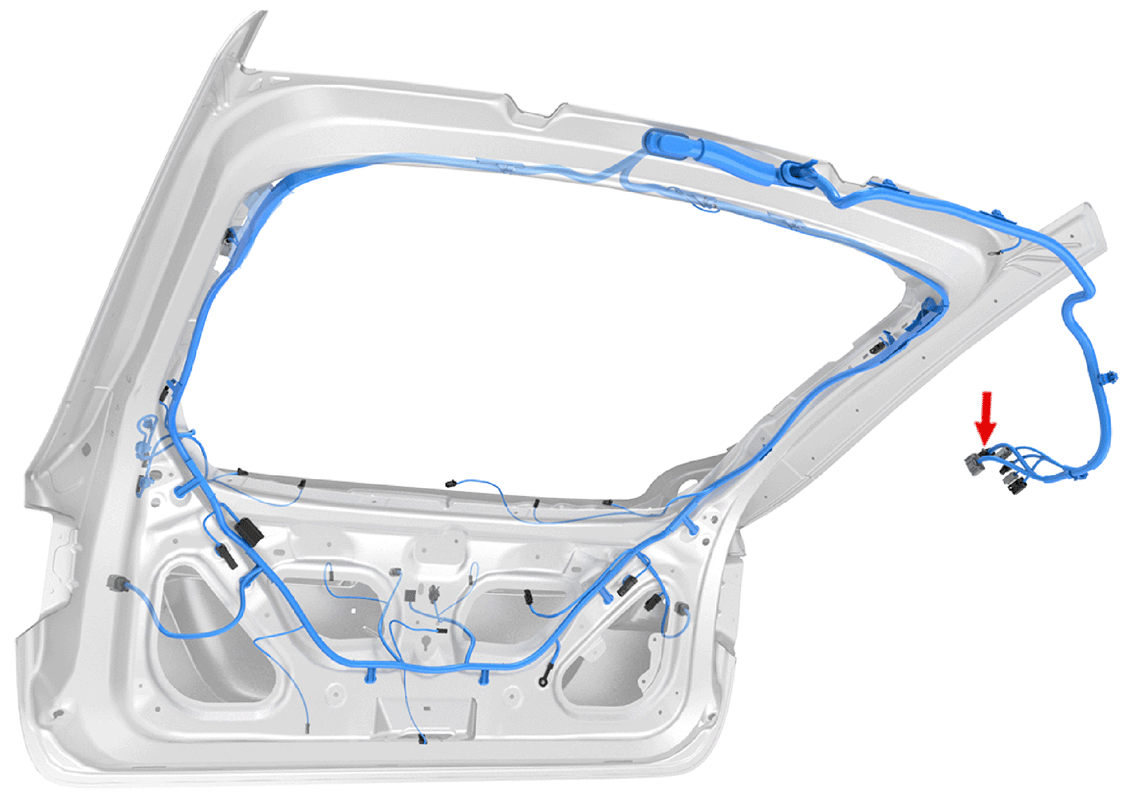

Fig 1: Connector Component Location - X955F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-3926

Fig 2: Connector End View - X955F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: BK

Cav	Col	Gauge
2	BN/WH	0.5
3	WH	0.5
4	RD	0.5
5	VT	0.5
6	WH	0.35
7	BN	0.35
8	VT	0.35
9	WH	0.35
10	BU	0.35
13	BU/WH	0.5
14	BU	0.5
15	GN	0.5
16	GY	0.5
17	GY/WH	0.5
18	BU	0.35
19	GY	0.35
20	VT	0.35
21	GN	0.35
