Connector End View - X954F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

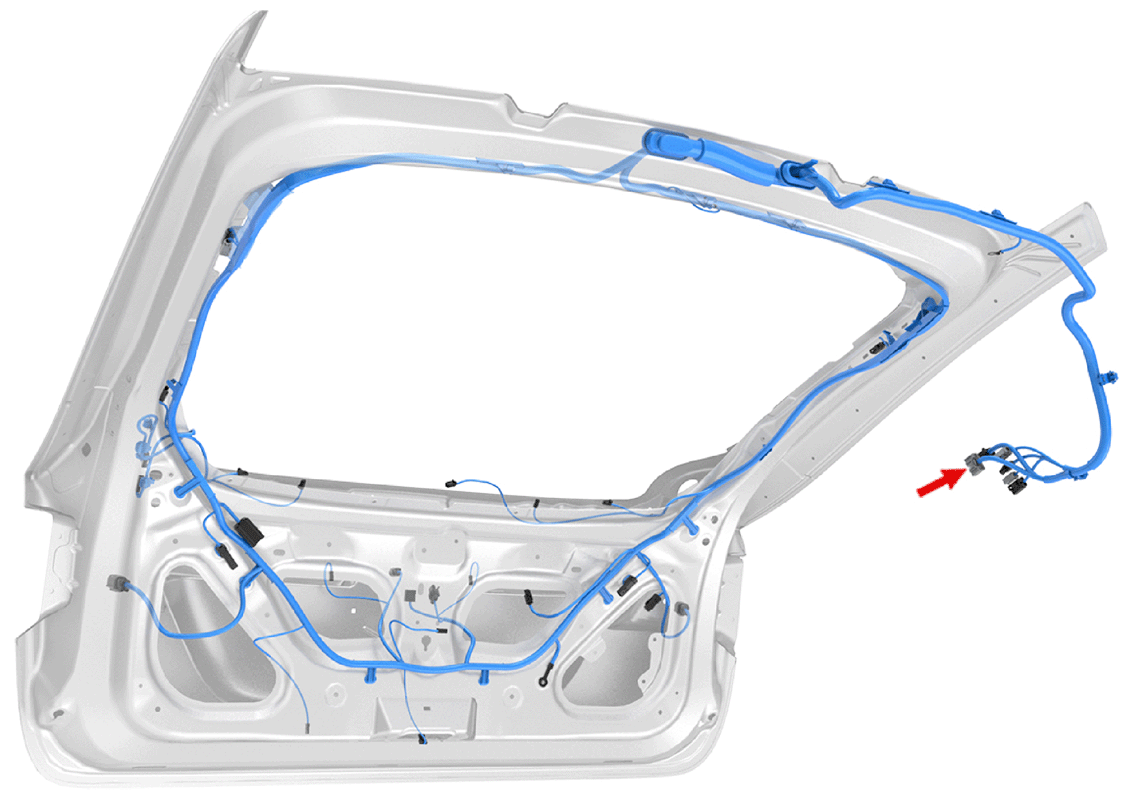

Fig 1: Connector Component Location - X954F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-5604

Fig 2: Connector End View - X954F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: WH

Cav	Col	Gauge
1	BU	0.75
2	GN	0.75
3	GY/WH	0.5
4	VT/WH	0.35
5	BU/WH	0.5
6	GN	0.35
7	VT	0.35
9	RD/BK	1
11	VT	0.75
12	BK	0.75
13	BU	0.5
14	VT	0.5
15	BU	0.35
16	GY	0.35
17	BK	1
