Connector End View - X953F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

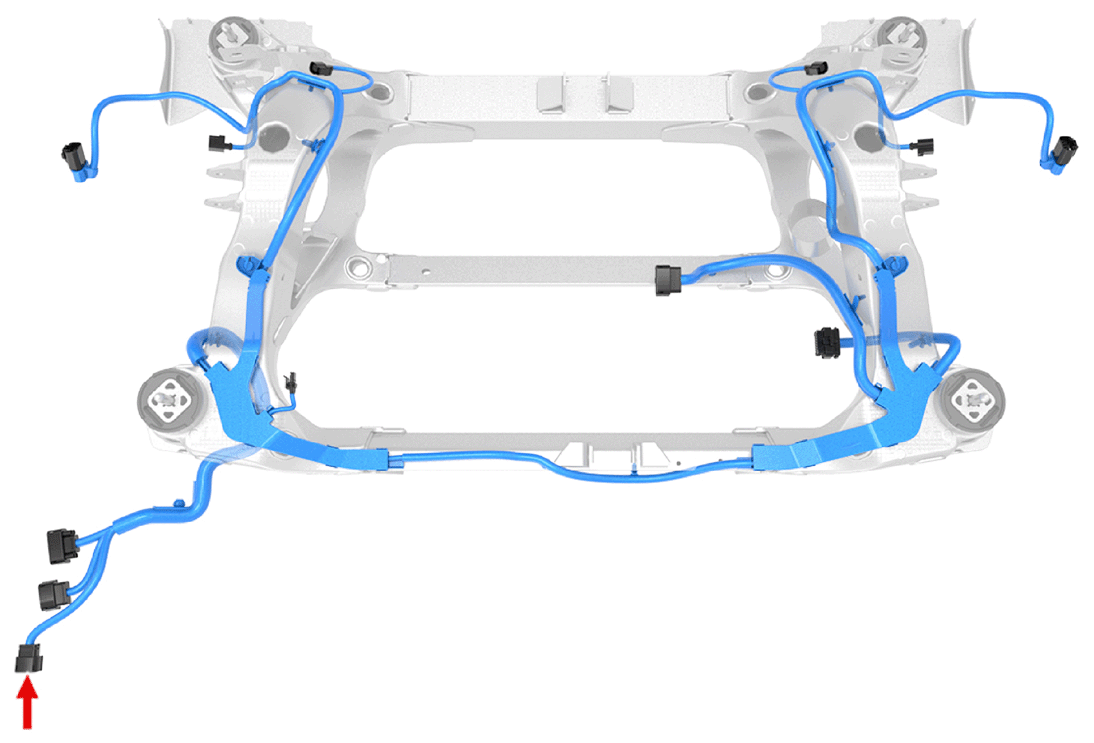

Fig 1: Connector Component Location - X953F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: molex_33472-1202

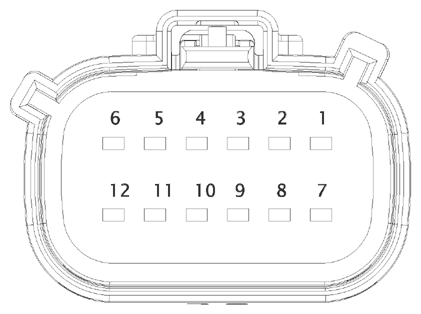

Fig 2: Connector End View - X953F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: Gray

Cav	Col	Gauge
1	RD/GN	0.5
2	GN	0.5
3	BK	0.5
5	GN/WH	0.5
6	GN	0.5
7	RD/VT	0.5
8	BN	0.5
9	BK/VT	0.5
11	BK/WH	0.5
12	WH	0.5
