Connector End View - X951F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

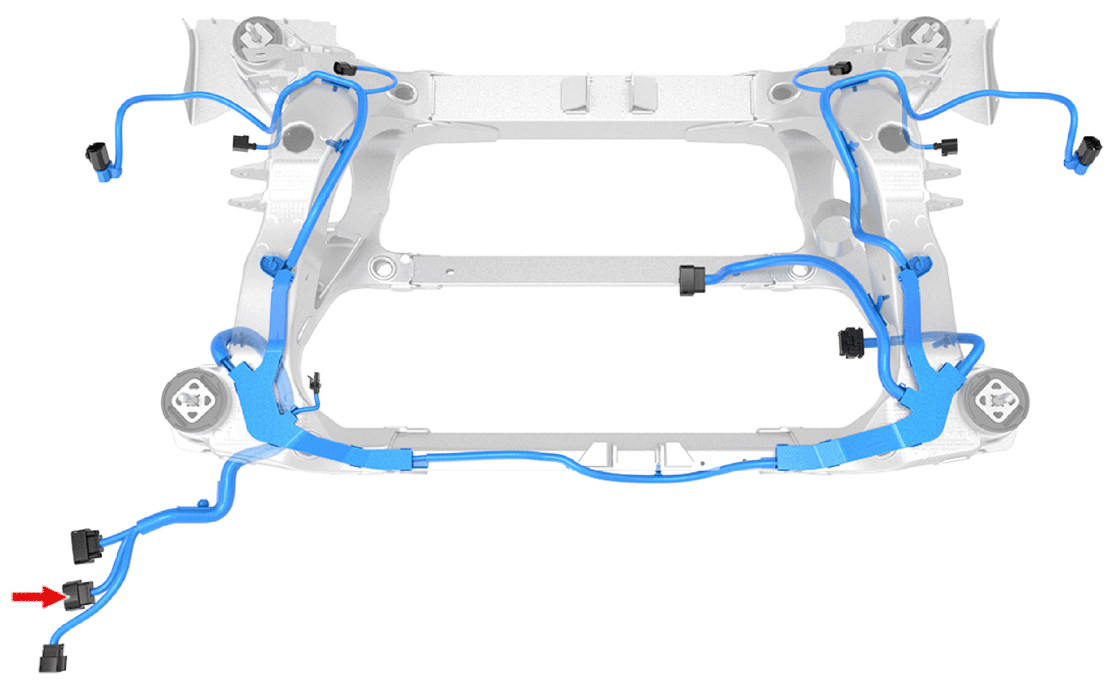

Fig 1: Connector Component Location - X951F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: molex_33472-1601

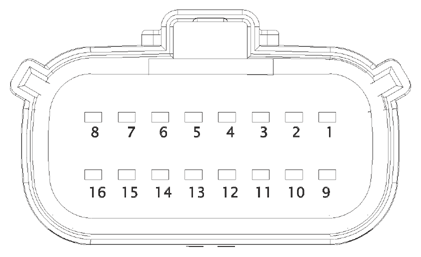

Fig 2: Connector End View - X951F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: BK

Cav	Col	Gauge
1	RD/BK	0.75
1	RD/BK	0.75
2	RD	0.5
2	RD	0.75
3	GN	0.5
3	GN	0.75
4	BU	0.5
4	BU	0.75
5	RD/WH	0.5
6	BN/WH	0.75
6	BN/WH	0.5
7	YE/WH	0.5
7	YE/WH	0.75
8	VT/WH	0.75
8	VT/WH	0.5
9	RD/BU	0.75
9	RD/BU	0.75
10	BN	0.75
10	BN	0.5
11	VT	0.5
11	VT	0.75
12	GY	0.75
12	GY	0.5
13	RD	0.5
14	WH	0.5
14	WH	0.75
15	YE	0.5
15	YE	0.75
16	BK	0.5
16	BK	0.75
