Connector End View - X940 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

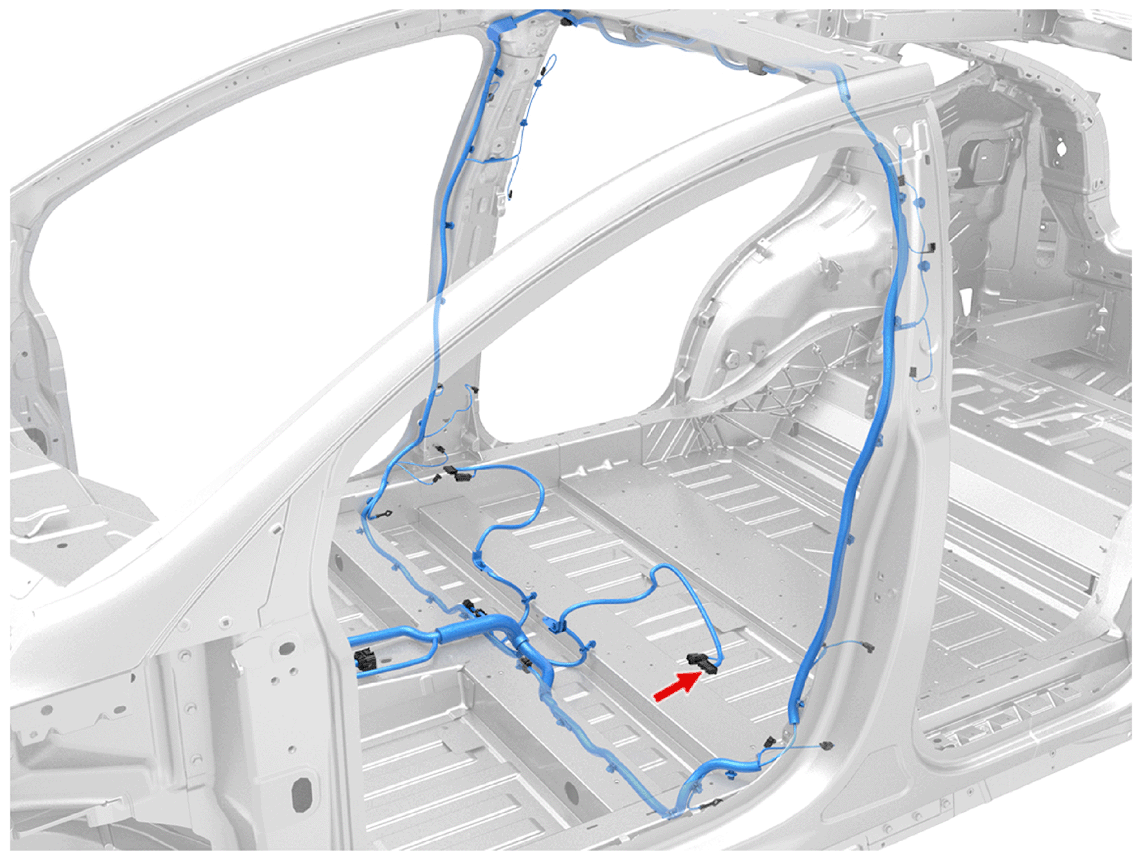

Fig 1: Connector Component Location - X940 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: yazaki_7287-1918

Fig 2: Connector End View - X940 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender: UNSPEC

Color: WH

Cav	Col	Gauge
1	GN/WH	0.75
2	GY/WH	0.35
3	VT	0.35
4	GN/WH	0.35
5	BN	0.35
10	BU	0.35
11	GN	0.35
12	VT/WH	0.35
13	RD/WH	0.35
14	RD/WH	2
15	BK	0.75
16	BK	0.35
17	BK/VT	0.35
18	GN	0.35
19	BK	0.35
22	BK	0.35
23	GN/WH	0.35
24	VT	0.35
25	BK	0.35
26	BK	2
