Connector End View - X930F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

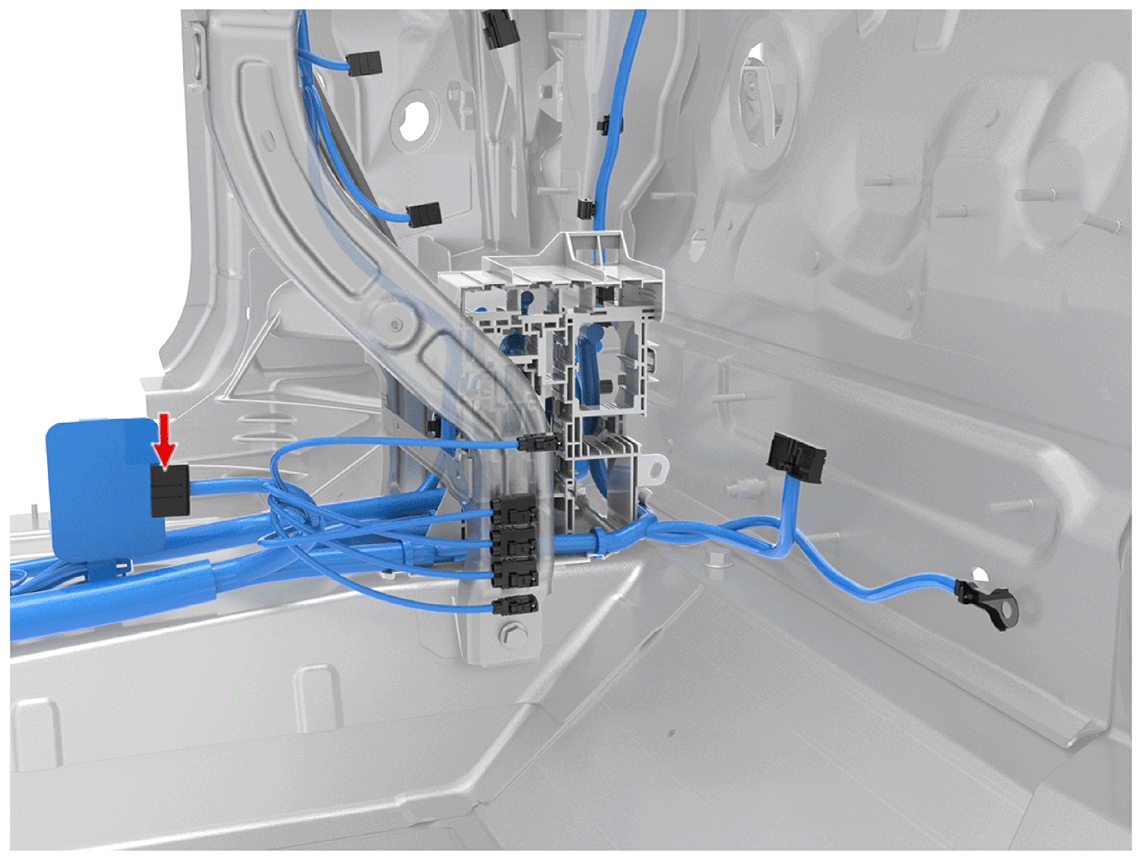

Fig 1: Connector Component Location - X930F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-5604

Fig 2: Connector End View - X930F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: WH

Cav	Col	Gauge
1	RD/VT	0.75
2	RD/WH	1
3	RD	0.5
4	BK	0.5
5	SI	0.35
10	BK/WH	0.75
11	RD/VT	1
18	BK	1
