Connector End View - X927F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

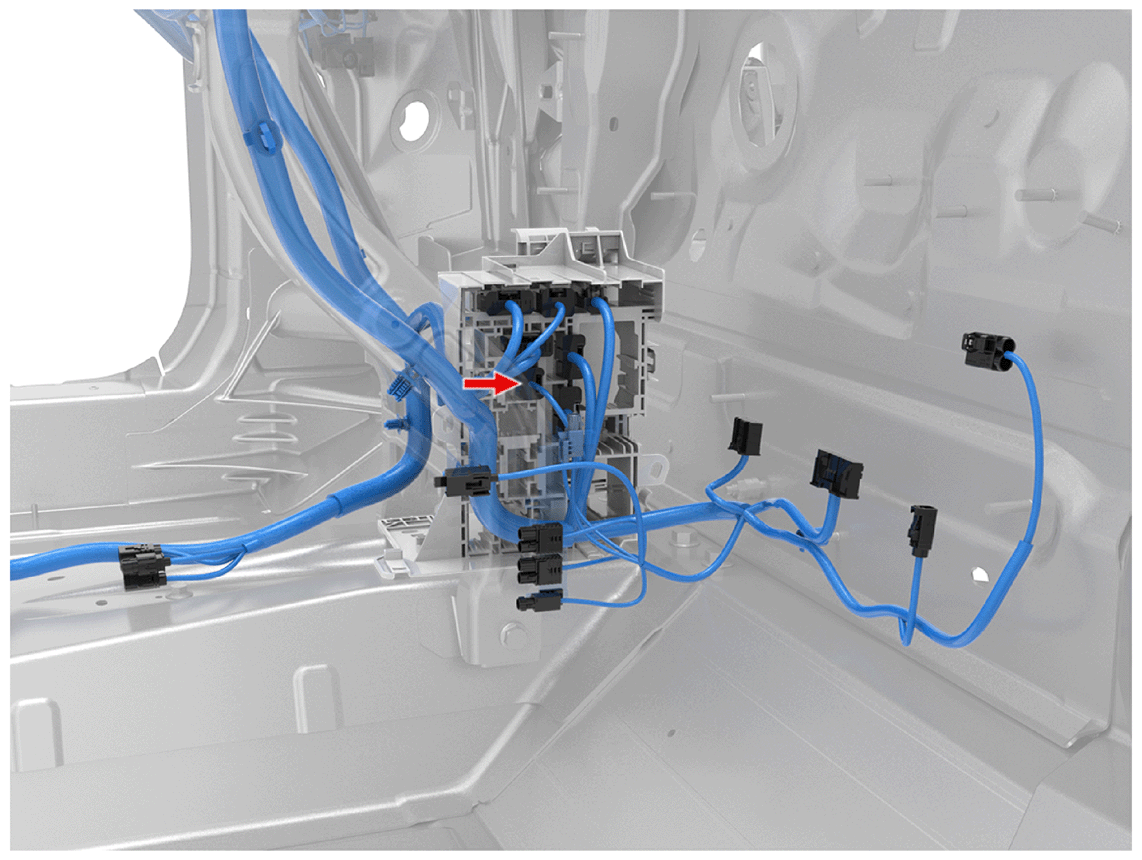

Fig 1: Connector Component Location - X927F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-6097

Fig 2: Connector End View - X927F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: WH

Cav	Col	Gauge
2	WH	0.13
3	BK	0.35
4	VT/WH	0.35
6	GY/WH	0.35
9	GY	0.13
10	VT	0.35
11	GY	0.35
