Connector End View - X925M [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

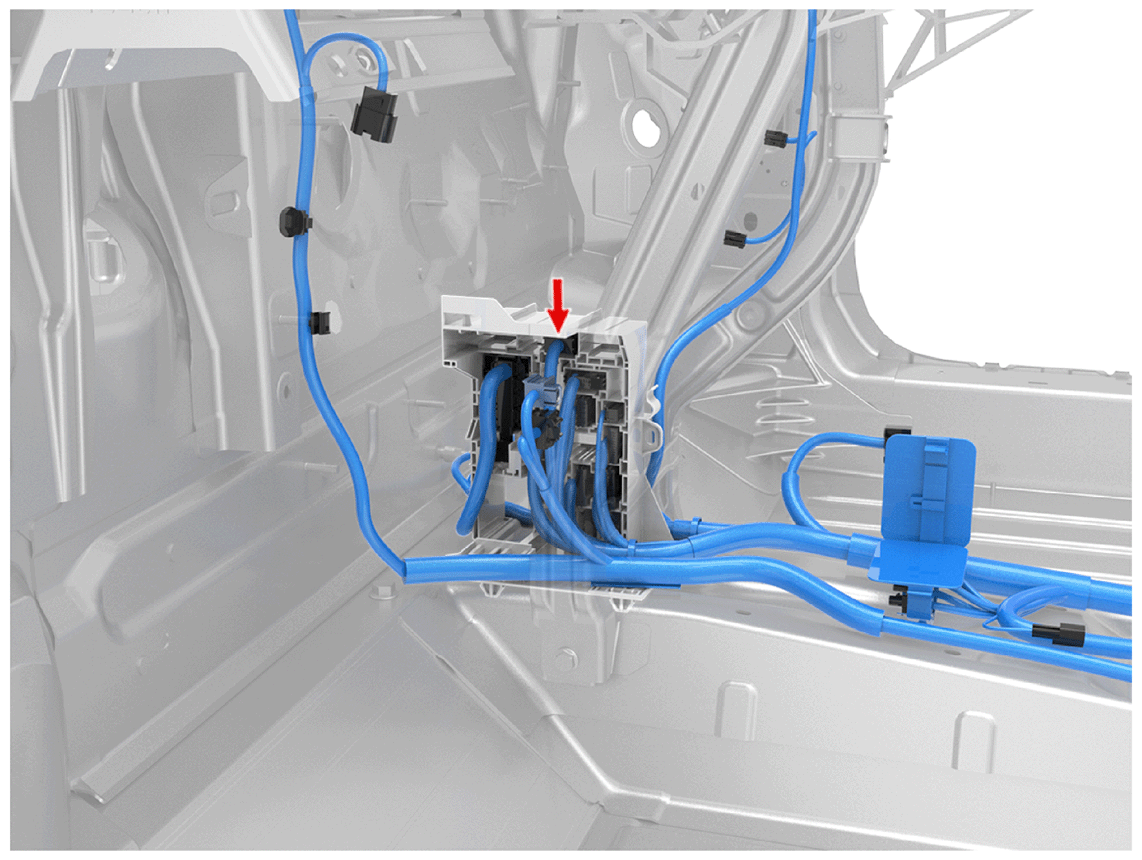

Fig 1: Connector Component Location - X925M [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-5655

Fig 2: Connector End View - X925M [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: GY

Cav	Col	Gauge
1	BU	1.5
2	BK	1.5
3	BU	0.75
4	VT	0.75
5	GN	0.75
6	BK	0.75
7	RD	1.5
8	WH	0.13
9	WH	0.35
10	RD/BU	0.35
12	RD	1.5
13	GY	1.5
14	GY	0.13
15	GN	0.35
16	VT	0.35
17	BK	0.35
18	BU	1.5
