Connector End View - X924F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

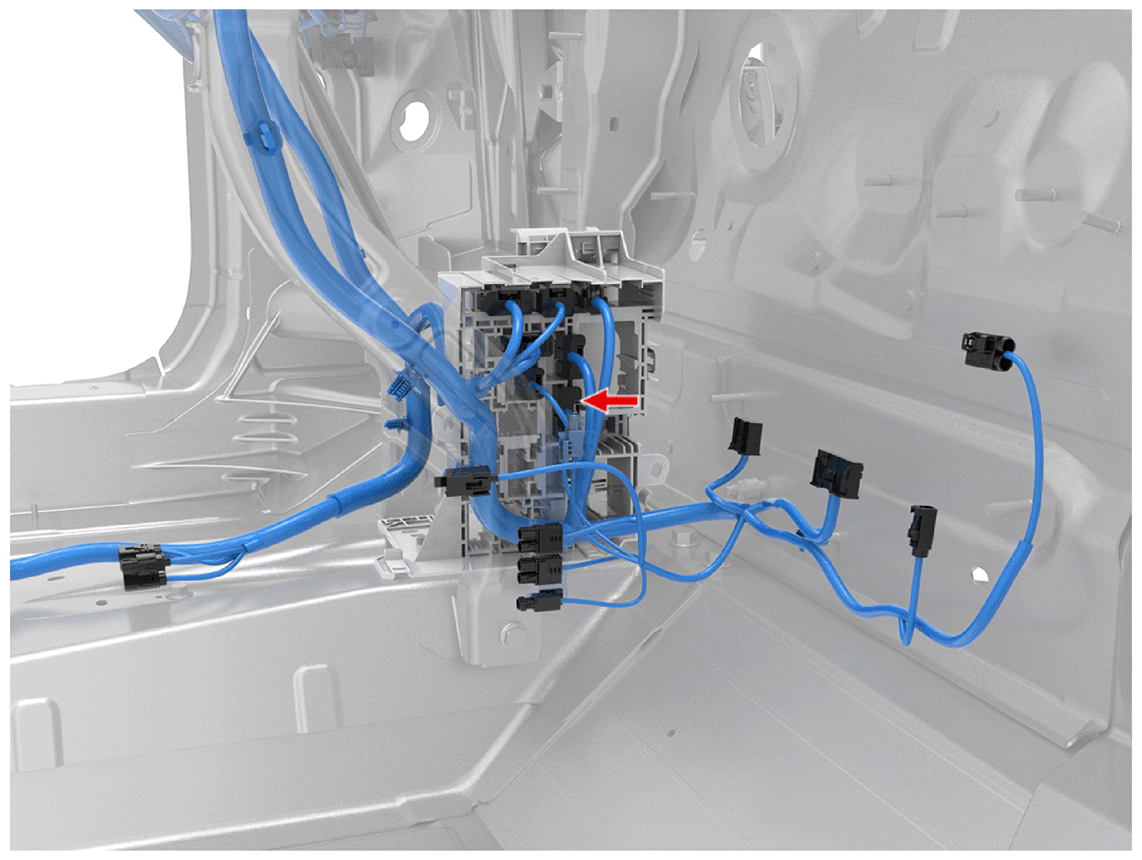

Fig 1: Connector Component Location - X924F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: yazaki_7287-1918-40

Fig 2: Connector End View - X924F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender: UNSPEC

Color: GY

Cav	Col	Gauge
1	BU	1.5
3	RD	0.13
4	GN	0.13
5	RD	0.5
6	SI	0.35
8	WH	0.13
10	BU/WH	0.35
11	VT/WH	0.35
12	GN/WH	0.35
14	RD/WH	1.5
15	RD/GN	0.75
16	BK	0.35
17	BU	0.35
18	GY	0.13
19	BK	0.5
21	BN	0.13
22	BU	0.35
23	VT	0.35
24	BU/WH	0.5
25	GN	0.35
