Connector End View - X922F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

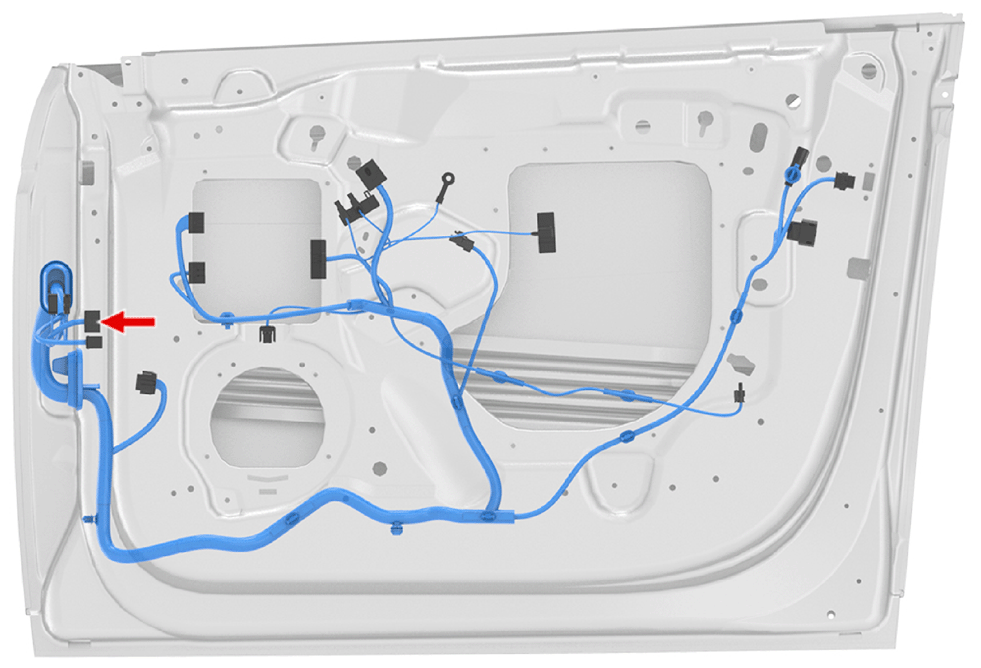

Fig 1: Connector Component Location - X922F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-5609

Fig 2: Connector End View - X922F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: GY

Cav	Col	Gauge
1	GY	1.5
2	RD/GN	0.75
5	YE	0.35
6	BN/WH	0.35
8	WH	0.35
9	BK	0.35
10	GN/WH	1
11	BK	1.5
13	BK	0.35
14	WH	0.35
15	BN	0.35
16	GY	0.35
17	BK	1.5
18	GN	1
