Connector End View - X915M [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

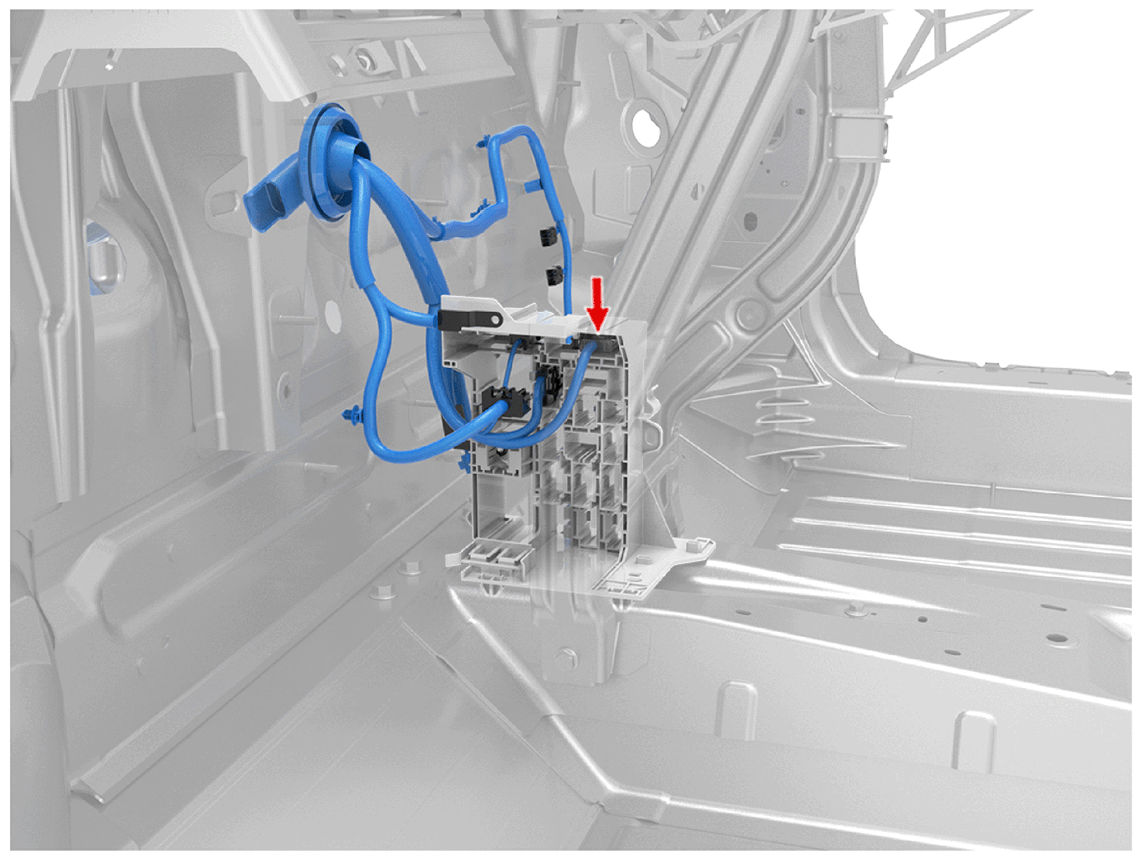

Fig 1: Connector Component Location - X915M [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-5634

Fig 2: Connector End View - X915M [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: BK

Cav	Col	Gauge
2	BN	2
4	WH	0.13
5	BU	0.13
6	YE	0.35
7	GN	0.13
8	YE	0.35
9	OG	0.5
10	RD/VT	1.5
14	GN	0.13
15	BU	0.35
16	GN	0.35
17	GY	0.5
