Connector End View - X913F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

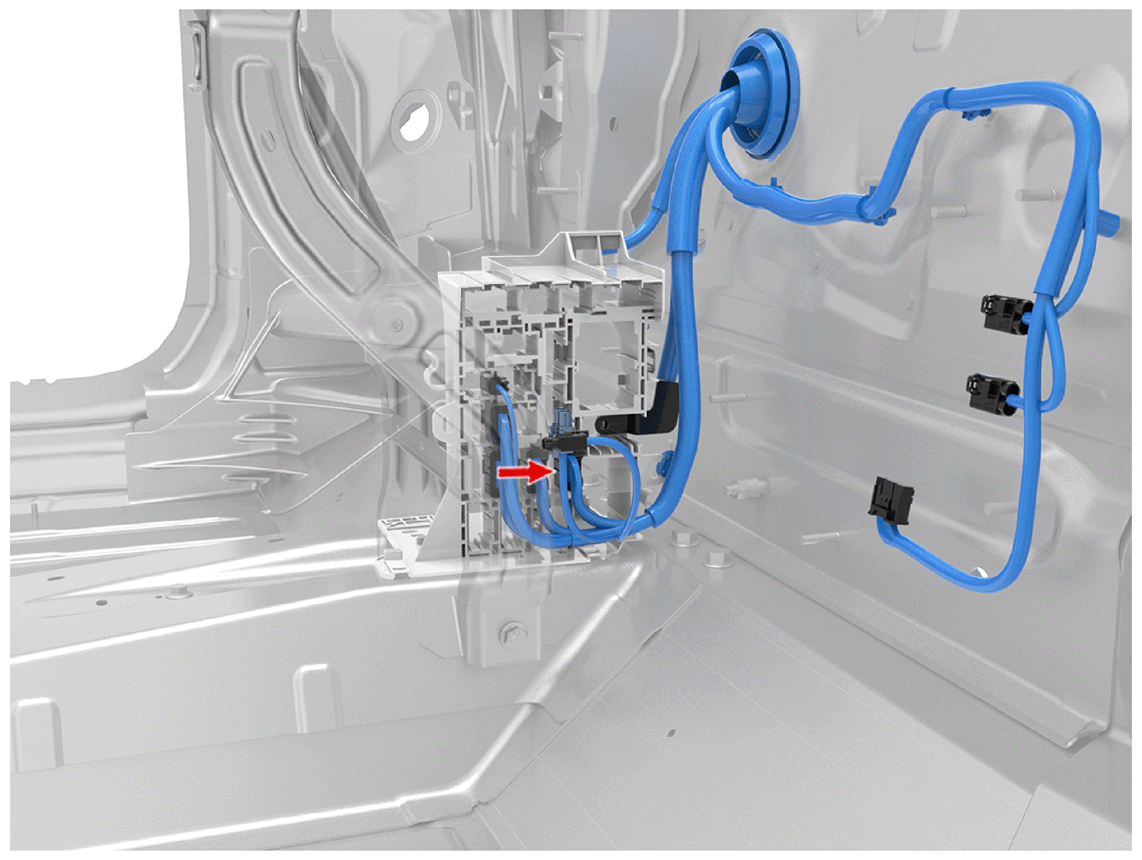

Fig 1: Connector Component Location - X913F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-5609

Fig 2: Connector End View - X913F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: GY

Cav	Col	Gauge
1	RD	2
2	RD	1
3	GN	0.13
4	GN	0.13
5	BK	0.13
6	RD/VT	0.35
7	BN	0.35
8	BK/VT	0.35
9	RD/VT	1
11	RD	0.5
12	YE	0.5
15	GN	0.5
16	VT/WH	0.5
17	GN	0.75
18	RD/WH	1
