Connector End View - X911M [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

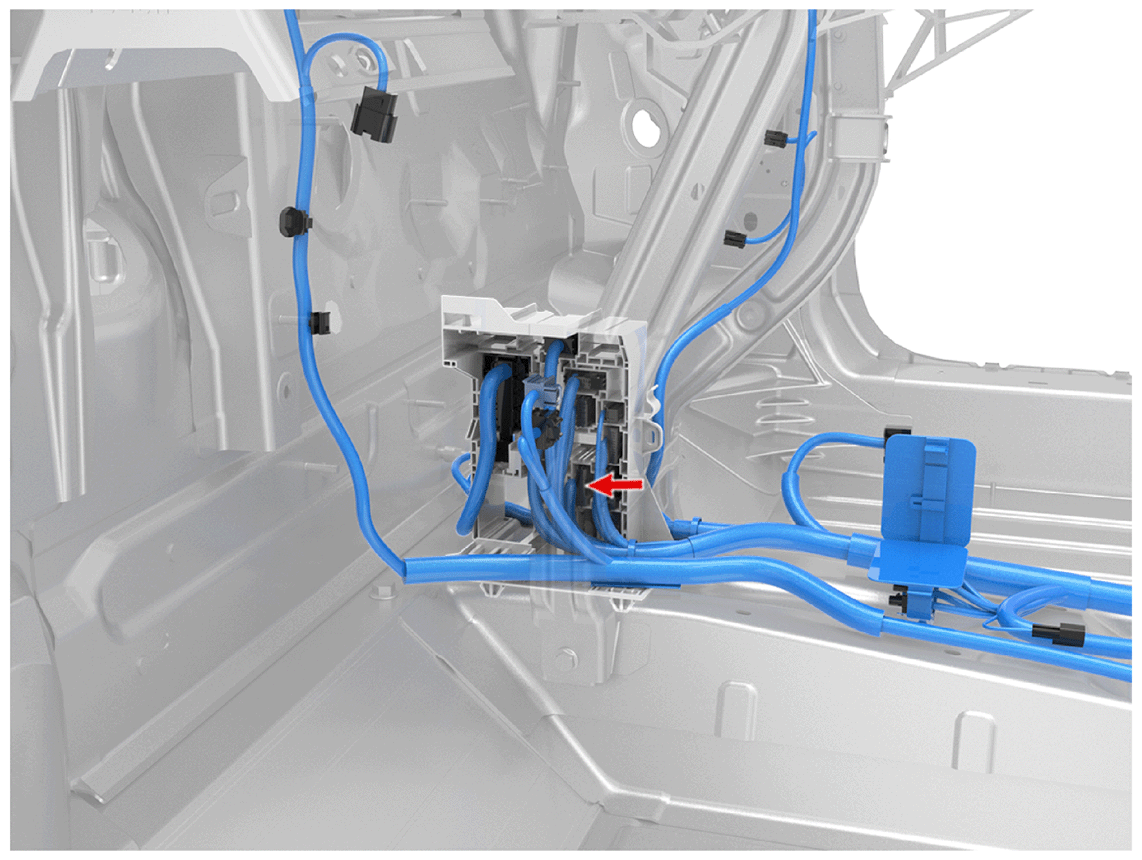

Fig 1: Connector Component Location - X911M [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-5616

Fig 2: Connector End View - X911M [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: BK

Cav	Col	Gauge
1	VT/WH	0.35
4	BN	0.13
5	WH	0.13
6	RD/WH	0.5
7	WH	0.13
8	BU	0.13
9	GN/WH	0.5
10	GN	0.5
11	YE/WH	0.35
15	GN	0.13
16	RD	0.5
17	BU	0.13
18	BK/WH	0.5
19	WH	0.5
20	YE	0.35
