Connector End View - X906F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

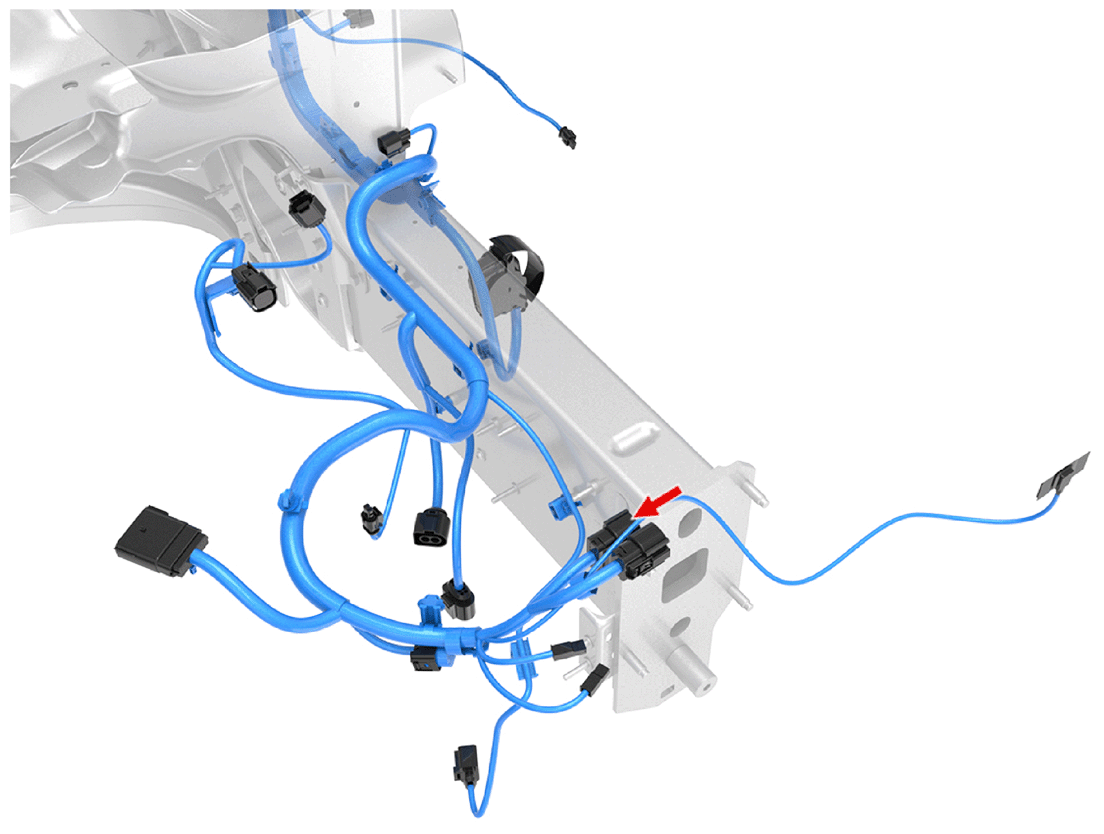

Fig 1: Connector Component Location - X906F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: molex_33472-1601

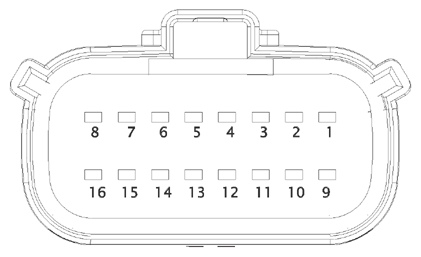

Fig 2: Connector End View - X906F [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: BK

Cav	Col	Gauge
3	RD/BU	0.5
4	RD	0.5
5	GN/WH	0.5
11	BU	0.75
12	GN	0.5
13	VT/WH	0.5
14	BN	0.5
15	BK	0.75
