Connector End View - X753 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

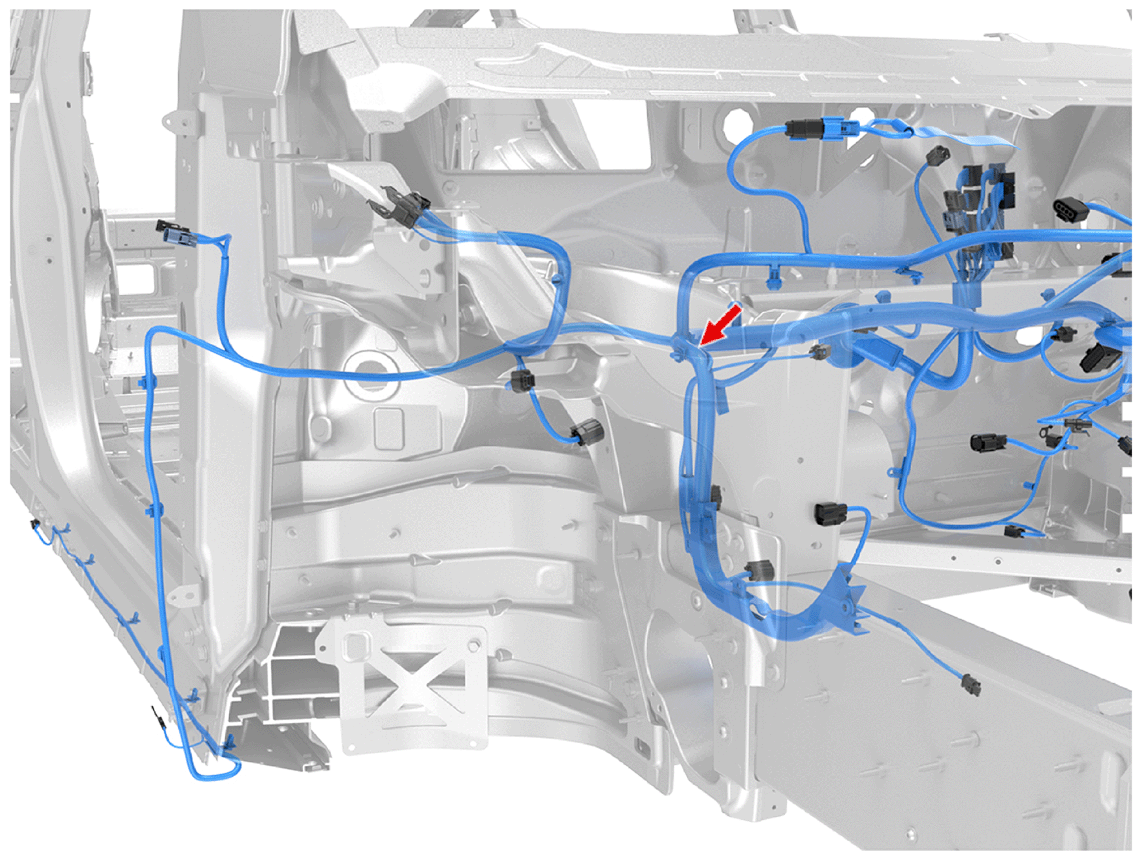

Fig 1: Connector Component Location - X753 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]
G15219733Courtesy of TESLA, INC.

Connector Detail: yazaki_7283-2764-30

Fig 2: Connector End View - X753 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]
G15219734Courtesy of TESLA, INC.

Gender:

Color: BK

Cav Col Gauge
1 BK/WH 0.35
2 BK/WH 0.35
3 BK/WH 0.35
4 BK 0.35
5 BK 0.35
6 BK 0.35
