Connector End View - X752 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

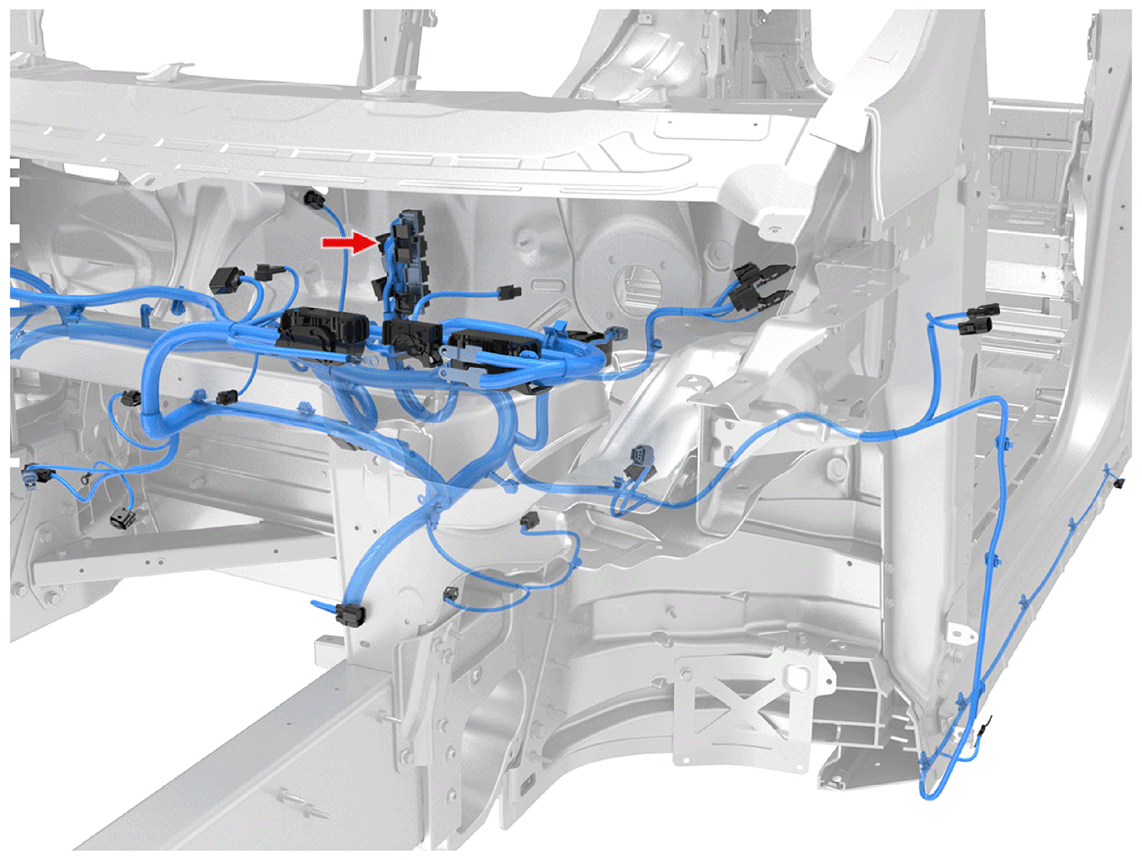

Fig 1: Connector Component Location - X752 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-3927

Fig 2: Connector End View - X752 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: BU

Cav	Col	Gauge
1	GN/WH	0.5
2	GN/WH	0.5
3	GN/WH	0.5
4	GN/WH	0.35
5	BU/WH	0.5
6	BU/WH	0.35
7	BU/WH	0.35
9	RD/WH	0.35
10	RD/WH	0.35
11	RD/WH	0.35
12	GN	0.5
13	GN	0.5
14	GN	0.13
20	WH	0.5
21	WH	0.5
22	WH	0.5
