Connector End View - X734 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

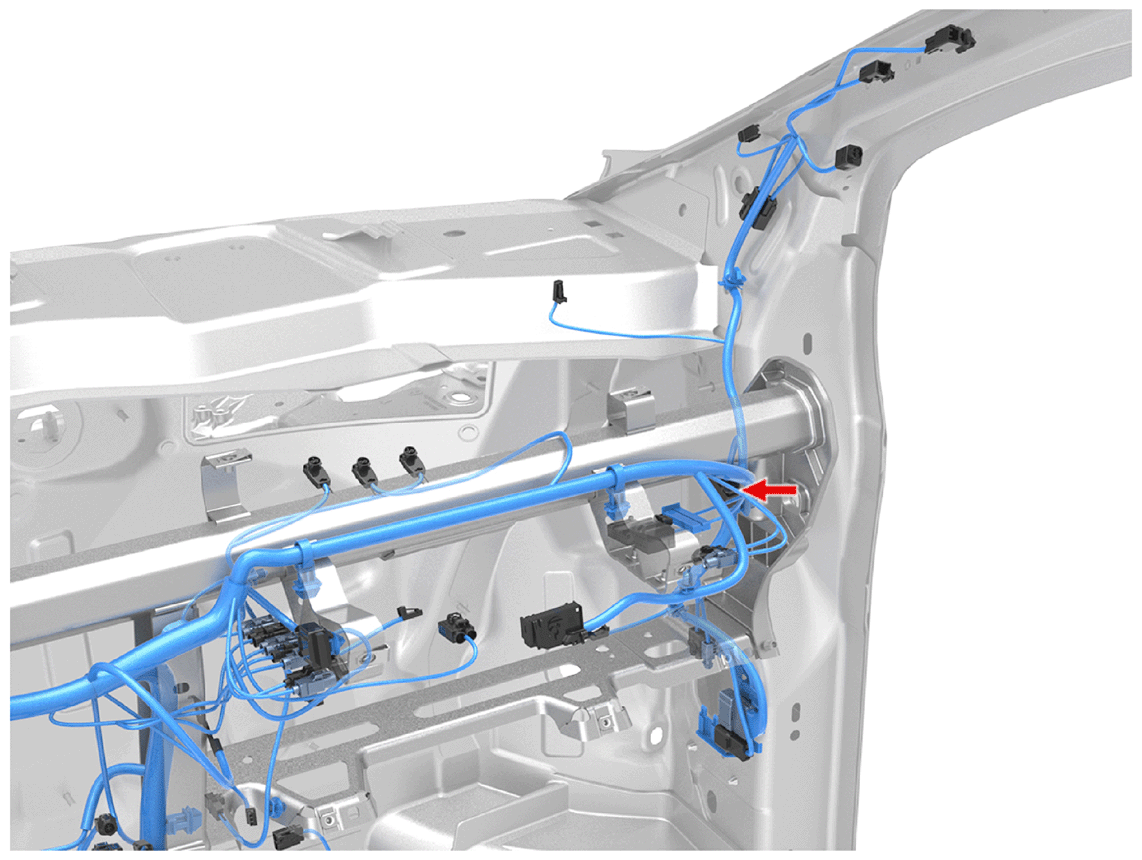

Fig 1: Connector Component Location - X734 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-3927

Fig 2: Connector End View - X734 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: BU

Cav	Col	Gauge
1	WH	0.13
2	BN/WH	0.35
3	BN/WH	0.35
4	WH	0.13
5	VT/WH	0.35
6	VT/WH	0.35
7	VT/WH	0.35
8	WH	0.35
9	WH	0.13
10	WH	0.35
12	BN	0.13
13	BN	0.35
14	BN	0.35
15	BN	0.13
16	VT	0.35
17	VT	0.35
18	VT	0.35
