Connector End View - X732 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

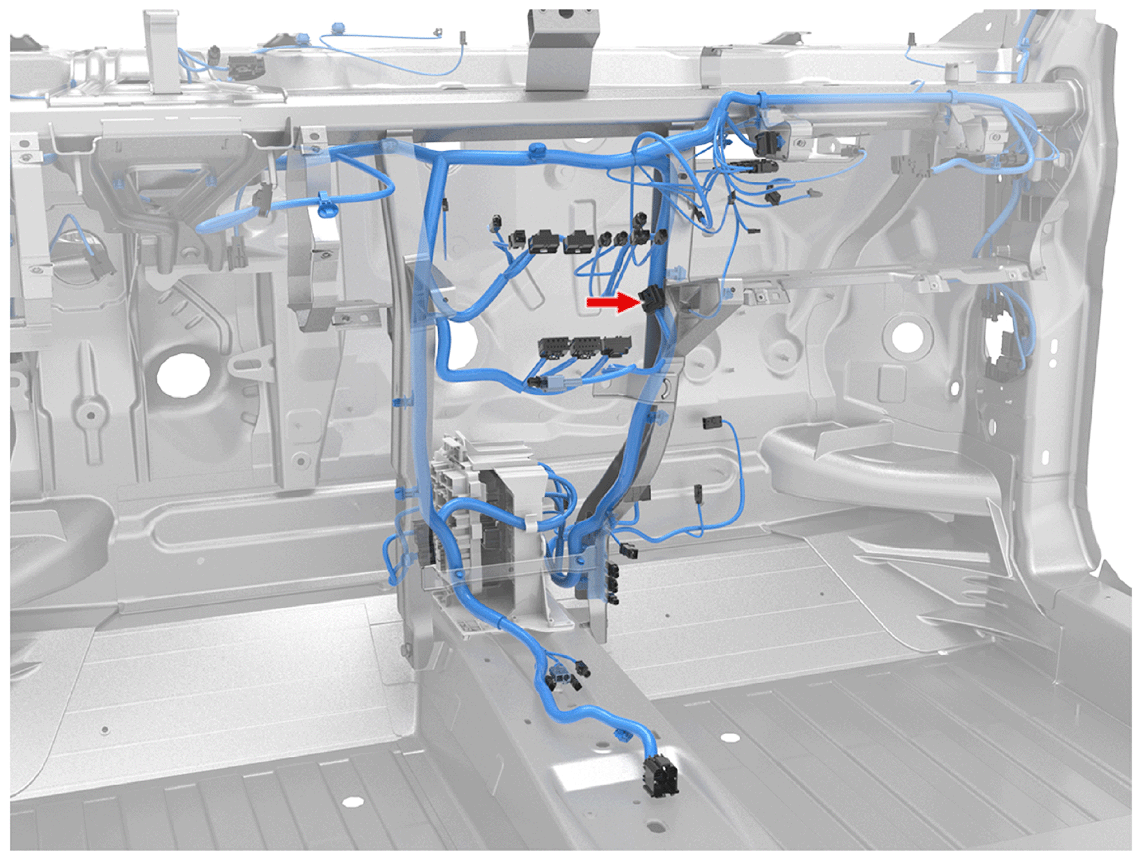

Fig 1: Connector Component Location - X732 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-3927

Fig 2: Connector End View - X732 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: BU

Cav	Col	Gauge
2	BU/WH	0.35
3	BU/WH	0.35
4	BU/WH	0.35
5	WH	0.13
6	WH	0.13
7	WH	0.13
8	RD?WH	0.35
9	RD/WH	0.35
10	RD/WH	0.35
11	WH	0.13
13	BU	0.35
14	BU	0.35
15	BU	0.35
16	BN	0.13
17	BN	0.13
18	BN	0.13
19	RD	0.35
20	RD	0.35
21	RD	0.35
22	RD	0.13
