Connector End View - X730 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

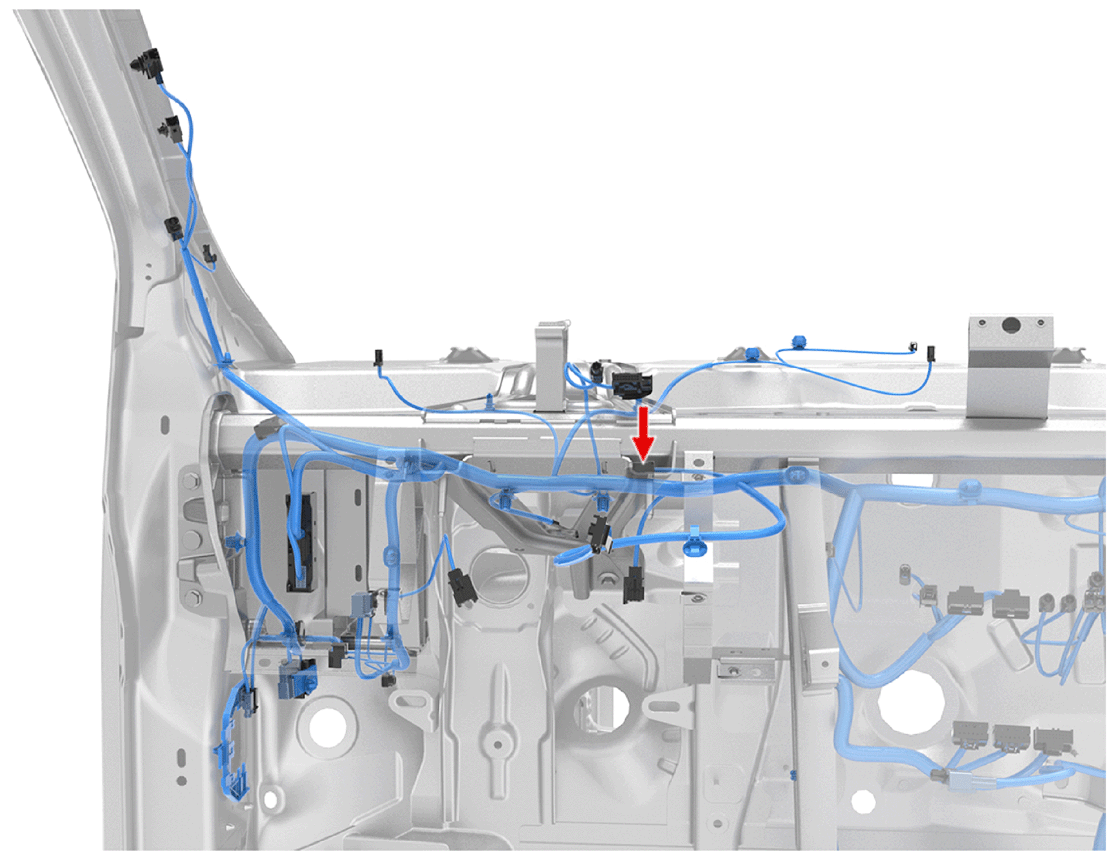

Fig 1: Connector Component Location - X730 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-3928

Fig 2: Connector End View - X730 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: GY

Cav	Col	Gauge
3	WH	0.13
4	GN/WH	0.35
5	GN/WH	0.35
6	GN/WH	0.35
7	GN/WH	0.35
8	GN/WH	0.5
9	GN/WH	0.35
14	GN	0.13
15	GN	0.35
16	GN	0.35
17	GN	0.35
18	GN	0.35
19	GN	0.5
20	GN	0.35
