Connector End View - X709 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

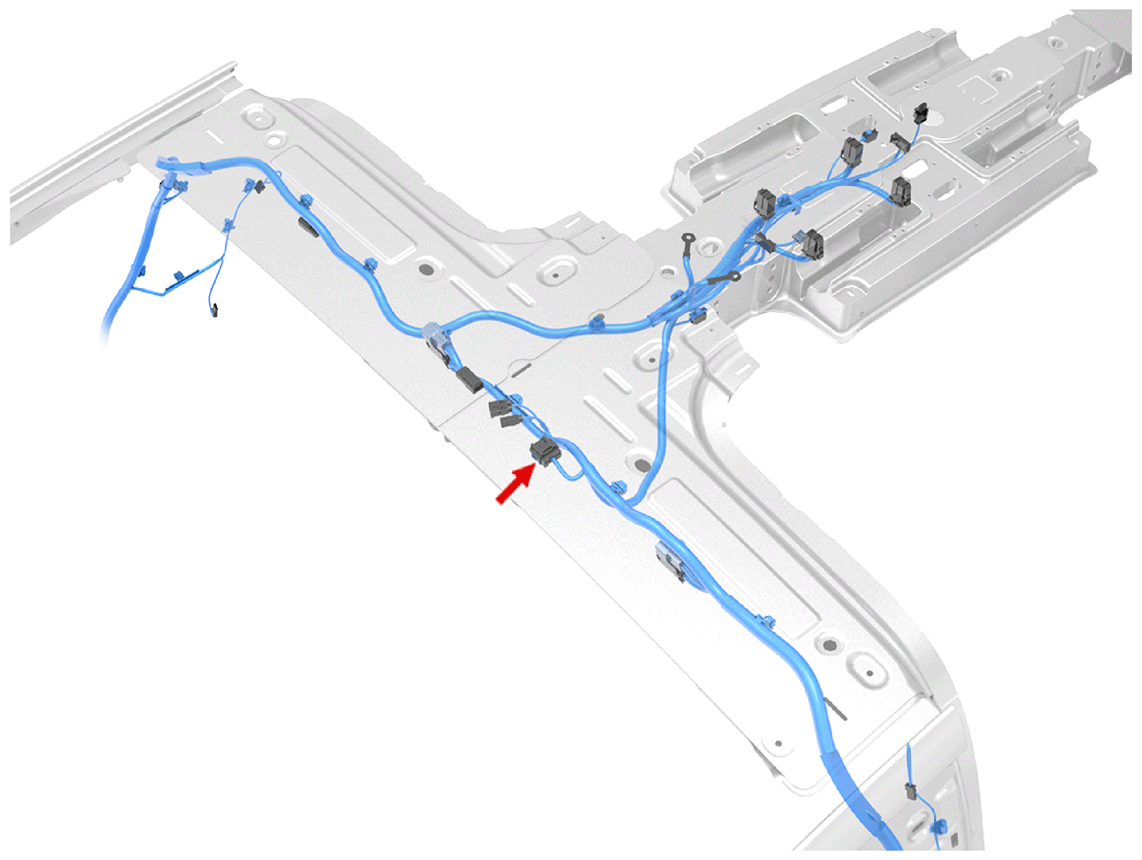

Fig 1: Connector Component Location - X709 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-3927

Fig 2: Connector End View - X709 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: BU

Cav	Col	Gauge
2	GN	0.35
3	VT	0.35
4	VT	0.13
5	BU	0.13
6	BU/WH	0.35
7	BU	0.13
16	GY	0.13
17	BK/GY	0.35
18	GY	0.13
