Connector End View - X700 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

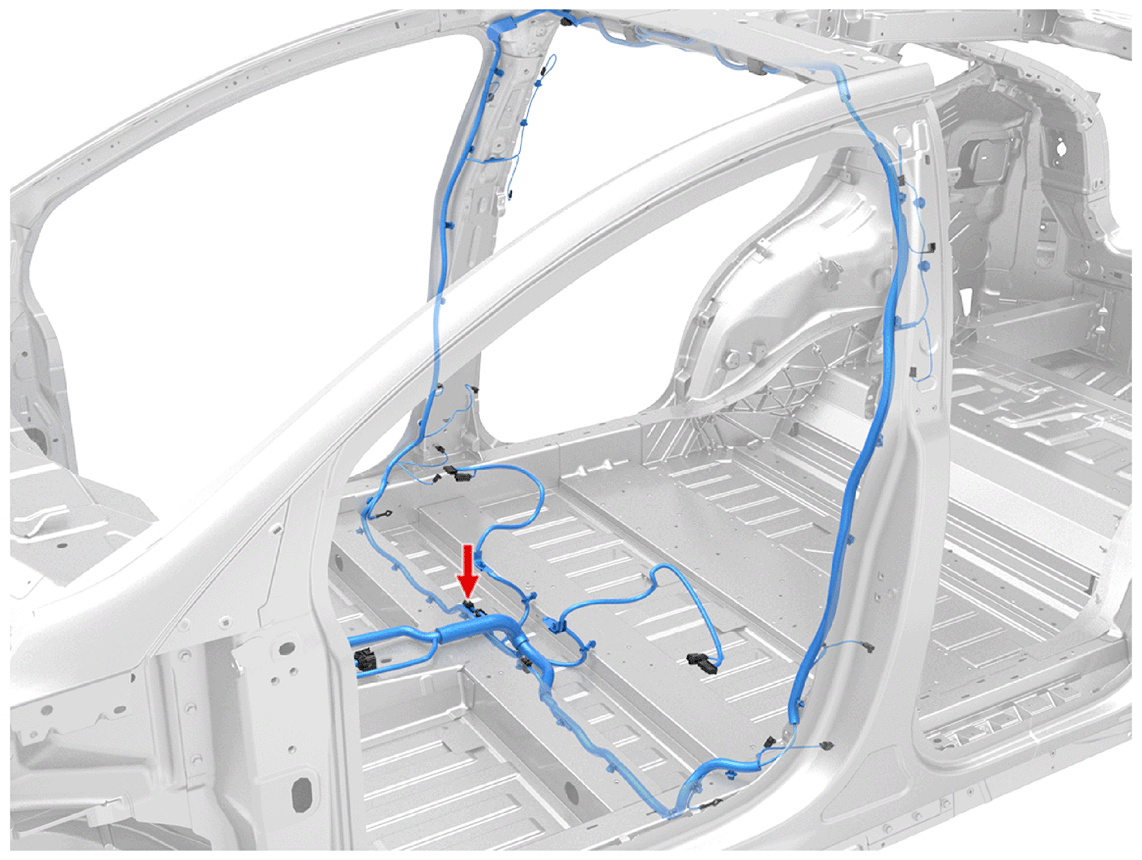

Fig 1: Connector Component Location - X700 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-3927

Fig 2: Connector End View - X700 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: BU

Cav	Col	Gauge
1	BK	0.13
2	BK	0.13
3	BK	0.13
4	BK	0.13
5	BU	0.35
6	BU	0.35
7	BU	0.35
8	BN	0.35
9	BN	0.35
10	BN	0.35
16	RD/WH	0.35
17	RD/WH	0.35
18	RD/WH	0.35
