Connector End View - X697 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

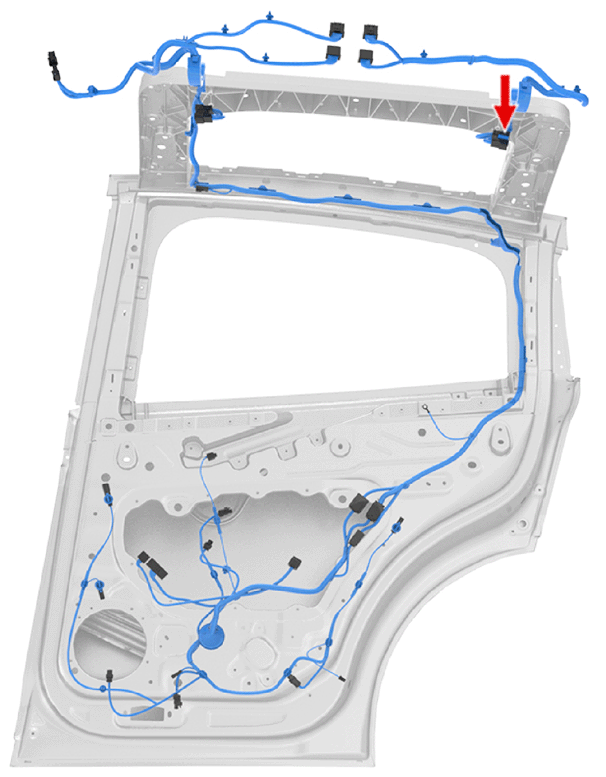

Fig 1: Connector Component Location - X697 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-5704

Fig 2: Connector End View - X697 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: WH

Cav	Col	Gauge
1	RD	2
2	GY	0.35
3	RD	0.35
4	BU	0.35
5	BK	0.35
6	BU	2
7	VT	0.35
8	SI	0.35
9	GN	2
10	GN	0.35
11	SI	0.35
12	WH	0.35
