Connector End View - X685 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

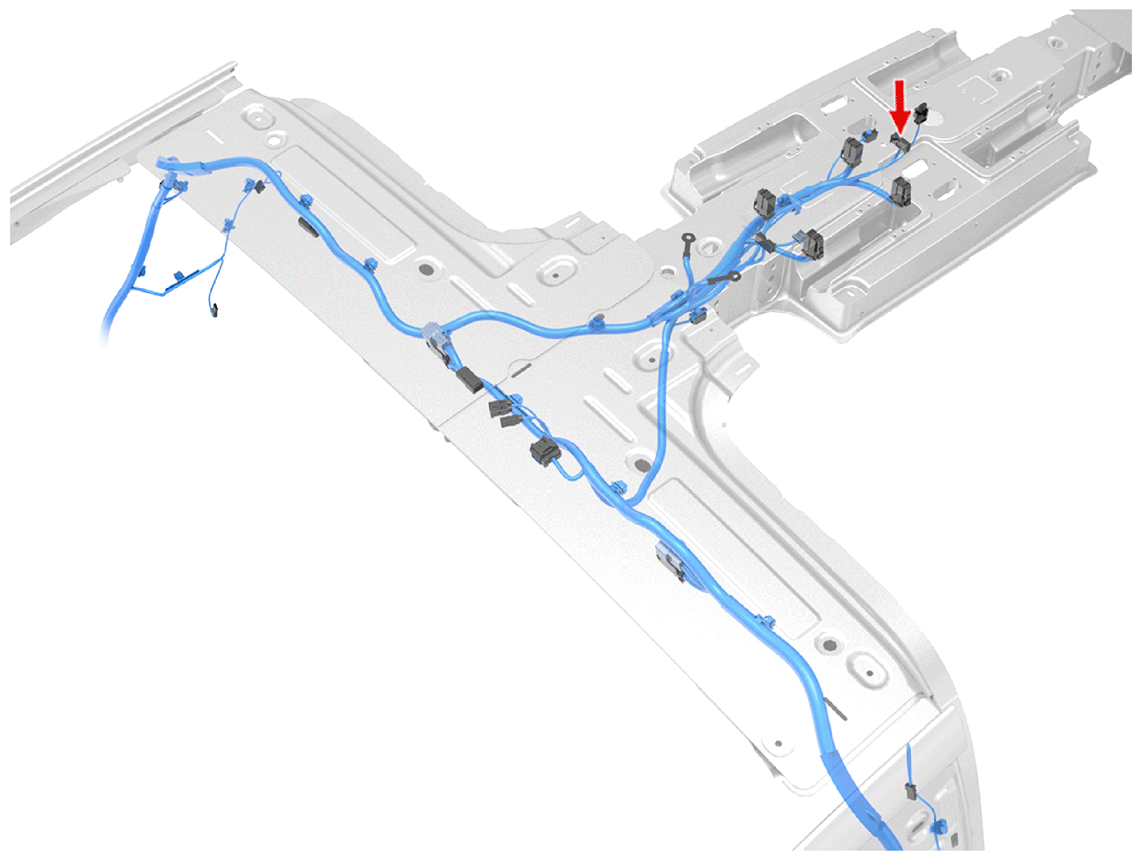

Fig 1: Connector Component Location - X685 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: molex_34824-0200

Fig 2: Connector End View - X685 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender: UNSPEC

Color: BK

Cav	Col	Gauge
3	WH	0.13
4	BN	0.13
5	BU	0.13
6	GY	0.13
7	WH	0.13
8	BK	0.13
12	BN	0.35
13	BU	0.35
15	WH	0.13
16	GN	0.13
