Connector End View - X628 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

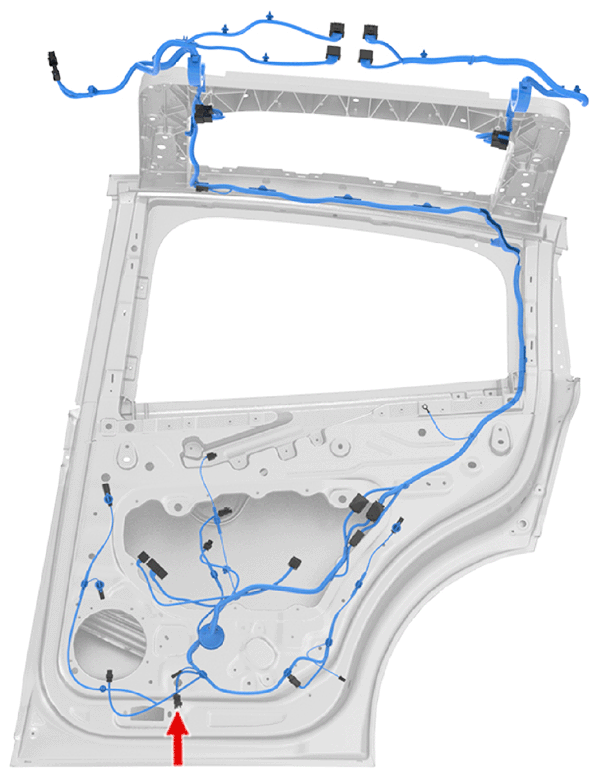

Fig 1: Connector Component Location - X628 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]
G15219643Courtesy of TESLA, INC.

Connector Detail: fci_211pc042s4021

Fig 2: Connector End View - X628 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]
G15219644Courtesy of TESLA, INC.

Gender: UNSPEC

Color: BK

Cav Col Gauge
1 RD/WH 0.5
2 BK/BU 0.5
3 VT/WH 0.35
4 GN 0.35
