Connector End View - X562 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

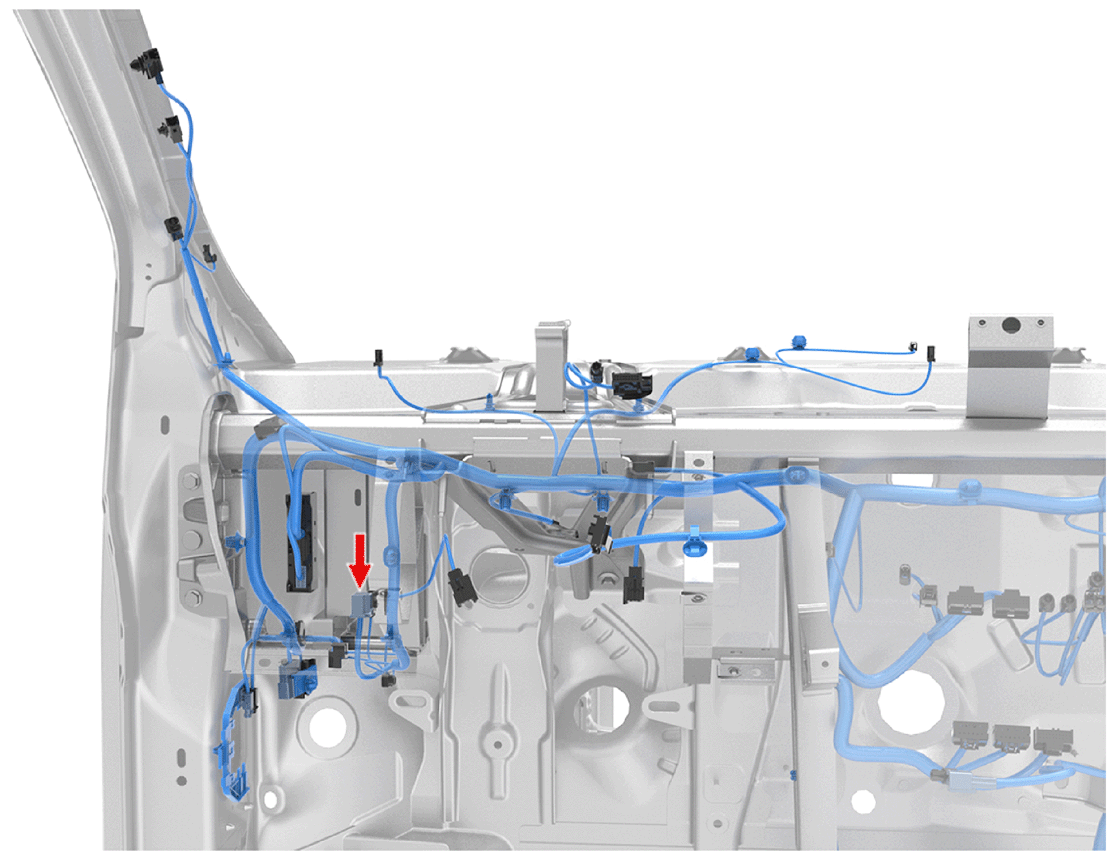

Fig 1: Connector Component Location - X562 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: molex_34729-0160

Fig 2: Connector End View - X562 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: BK

Cav	Col	Gauge
1	RD/GN	0.35
5	SI	0.35
6	GY	0.35
7	GY/WH	0.35
8	BK	0.5
10	BN/WH	0.35
11	BN	0.35
13	SI	0.35
14	GN	0.35
15	GN/WH	0.35
16	BK	0.5
