Connector End View - X561 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

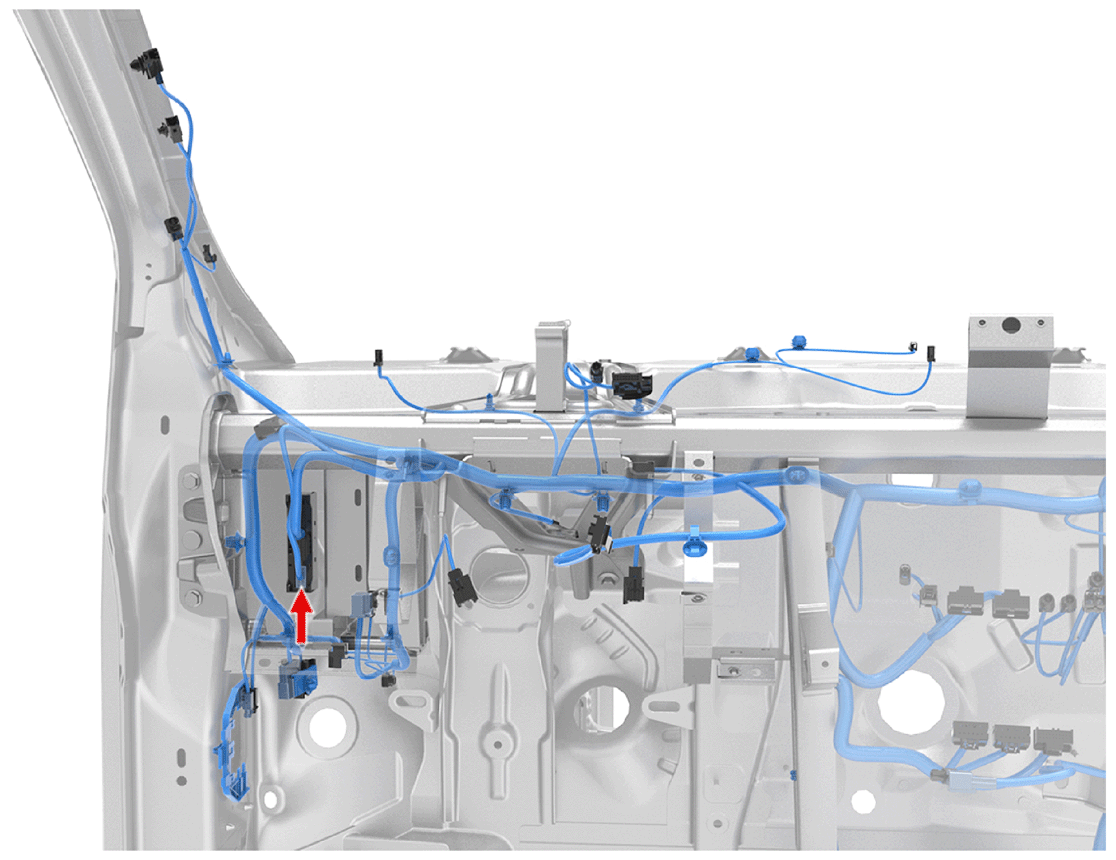

Fig 1: Connector Component Location - X561 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: amp_1534181-1

Fig 2: Connector End View - X561 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: BK

Cav	Col	Gauge
23	GY	0.35
24	BU/WH	0.35
25	RD/WH	0.35
26	WH	0.35
27	GN/WH	0.35
28	BN	0.35
29	BU	0.35
30	RD	0.35
31	BK	0.35
32	GN	0.35
