Connector End View - X543 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

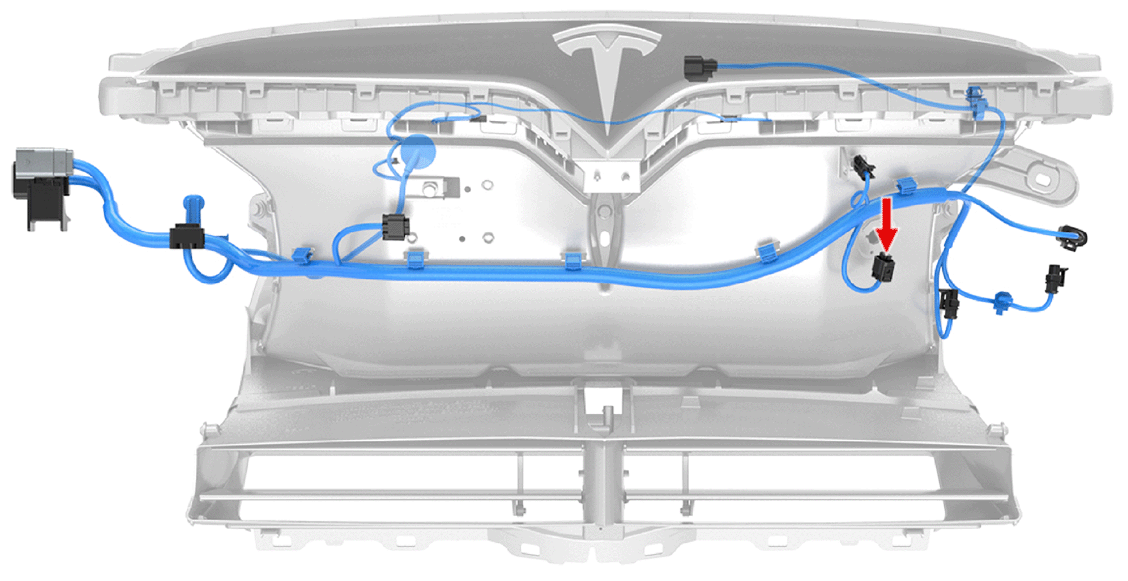

Fig 1: Connector Component Location - X543 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]
G15219585Courtesy of TESLA, INC.

Connector Detail: amp_2-967642-1

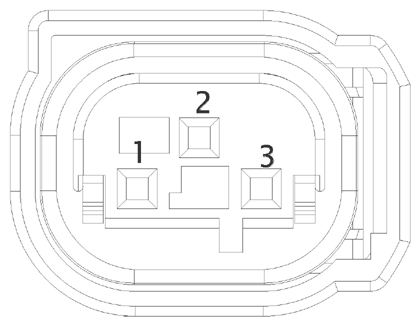

Fig 2: Connector End View - X543 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]
G15219586Courtesy of TESLA, INC.

Gender: UNSPEC

Color: Gray

Cav Col Gauge
1 RD 0.5
2 BK 0.5
3 GN/WH 0.5
